Rear Shelf: Service and Repair

Rear Shelf, Removing And Installing

Removing

CAUTION: Disconnect battery ground (GND) strap before working on electrical system.

NOTE: Before disconnecting battery, see note concerning radio anti-ft coding in Owners Manual.

- Switch ignition off.
- Push backrests forward.

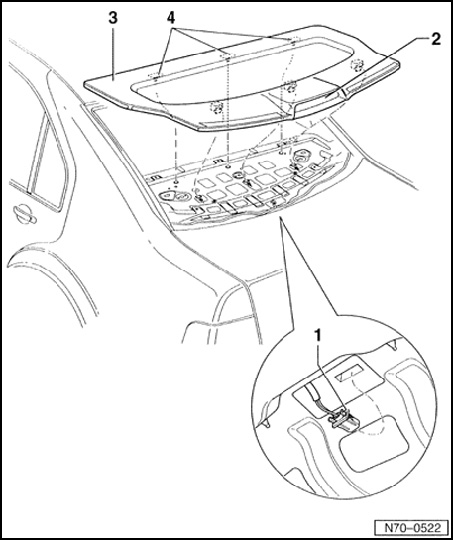

- Disconnect connector - 1 - from auxiliary brake lights - 2 -.







- Unclip rear shelf - 3 - and remove.







Installing
- Installation is reverse of removal.

NOTE:
- Before installing, check clips - 4 - for damage and replace if necessary.
- After connecting battery, check vehicle equipment (radio, clock, electric windows) as per Repair Manual and/or Owners Manual.
- If engine Electronic Control Module (ECM) is subject to low voltage with ignition on, DTC memory and Readiness code must be checked.
