02A Transmission

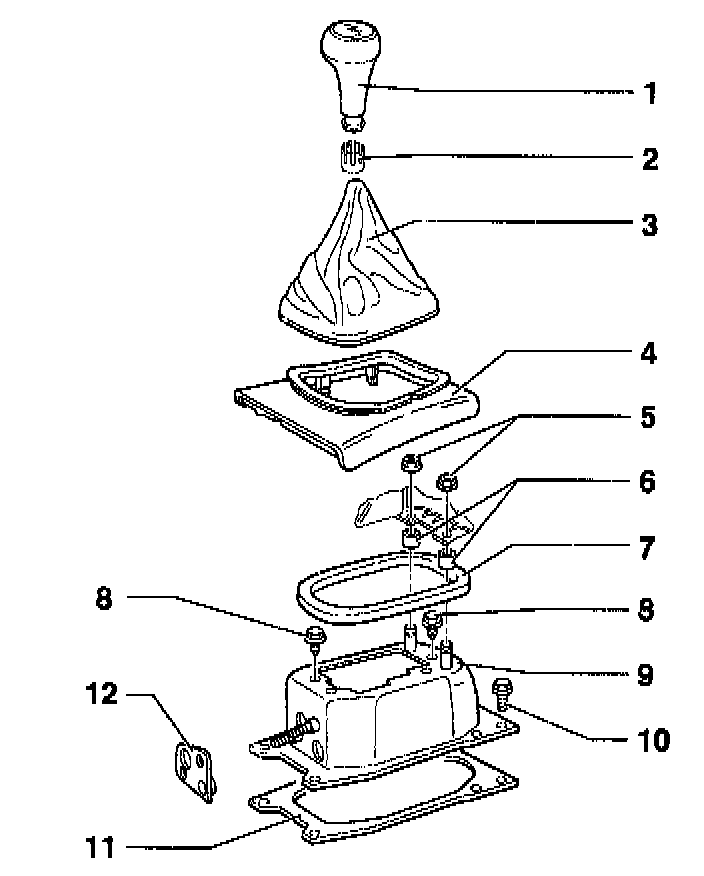

GEAR SELECTOR HOUSING, REMOVING AND INSTALLING





1 - Shift knob

2 - Sleeve
Installing see "SHIFT LEVER BOOT, INSTALLING" below.

3 - Boot
When removing, lift oft with frame from center console
Installing see "SHIFT LEVER BOOT, INSTALLING" below.

4 - Frame

5 - Hex nut
Attaches console to gearshift housing -9-
Remove before removing gear selector mechanism

6 - Spacer
Installed between console and gearshift housing -9-

7 - Gasket
Between gearshift housing and floor
Self-adhesive
Attach to gearshift housing

8 - Hex bolt
For mounting plate to gearshift housing
Tightening torque: 15 Nm (11 ft lb)

9 - Gearshift housing

10 - Hex bolt
Quantity: 4
Tightening torque: 25 Nm (18 ft lb)

11 - Gasket
Self-adhesive
Attach to underside of gearshift housing

12 - Gasket
Install between selector cables and gearshift housing

SHIFT LEVER BOOT, INSTALLING

- Turn boot inside out.

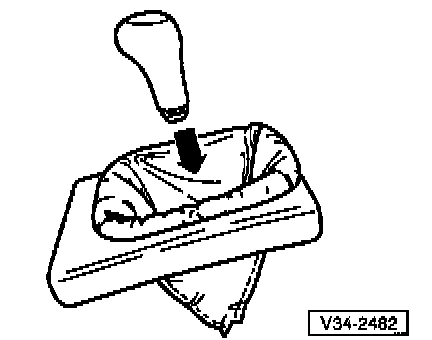

- Insert shift knob in boot (-arrow-).

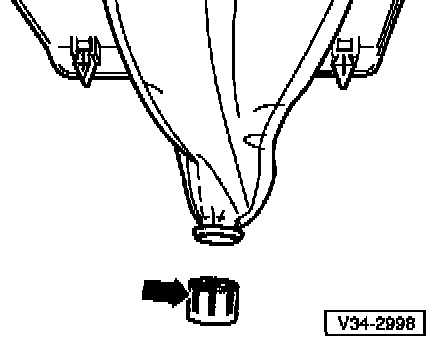

- Secure boot to shift knob with sleeve (-arrow-).

- Install shift knob and boot together.
