Normal Scan Data Values
>>
Scan Data Value Tables
>>
Display Group 04
>>

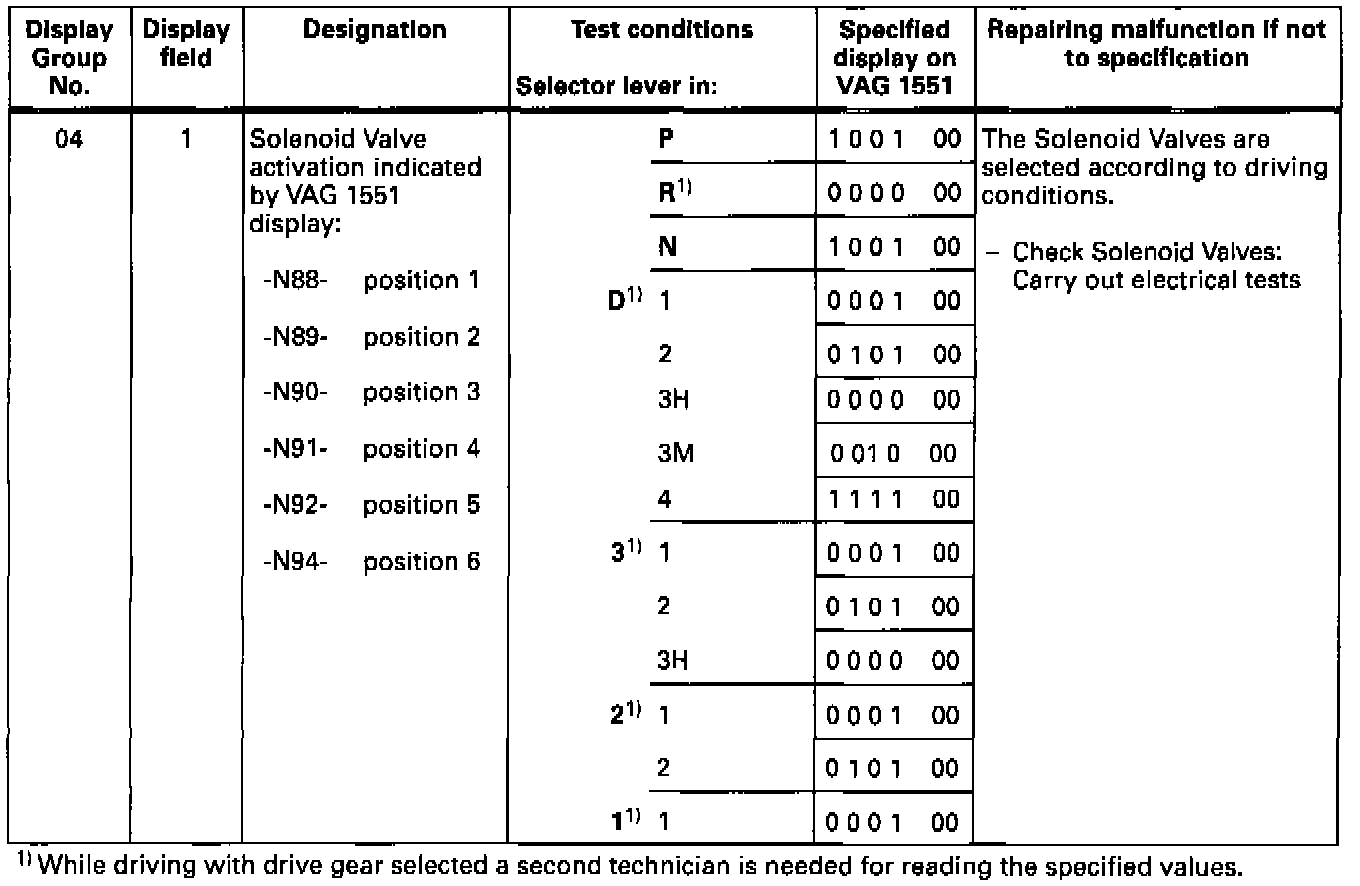

096 Transmissions Up to Dec. 1992

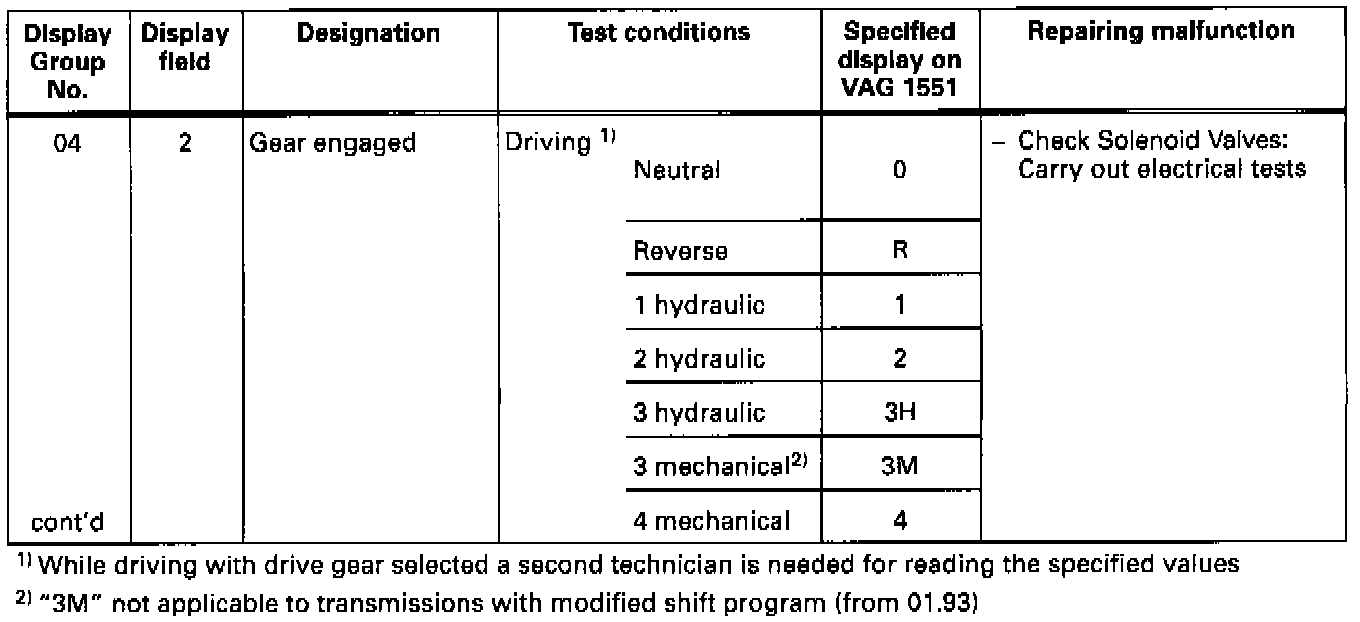

096 Transmissions Up to Dec. 1992

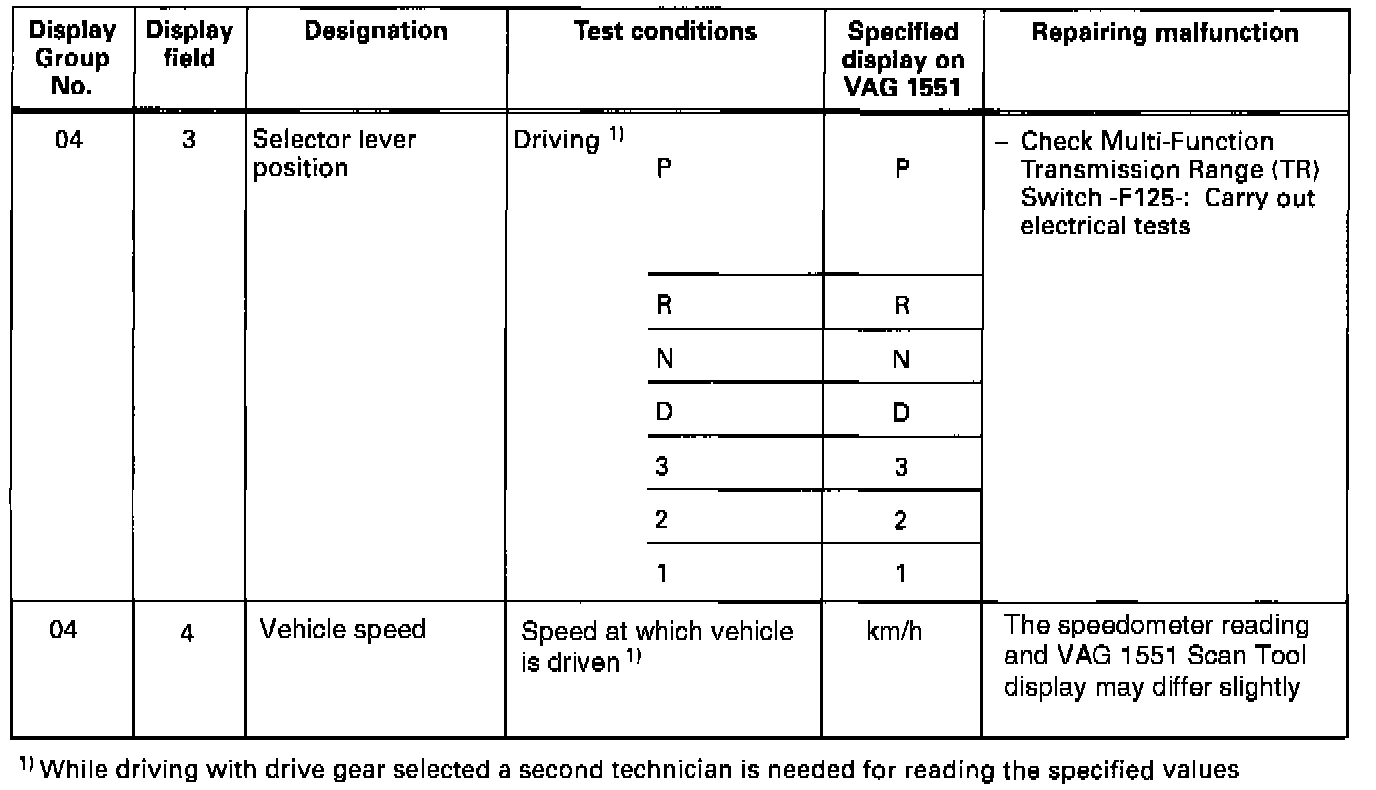

096 Transmissions From 1/93 View 2:
096 Transmissions From 1/93 View 3:
