Display Group 04
>>
096 Transmissions From Jan. 1993
096 Transmissions From Jan. 1993

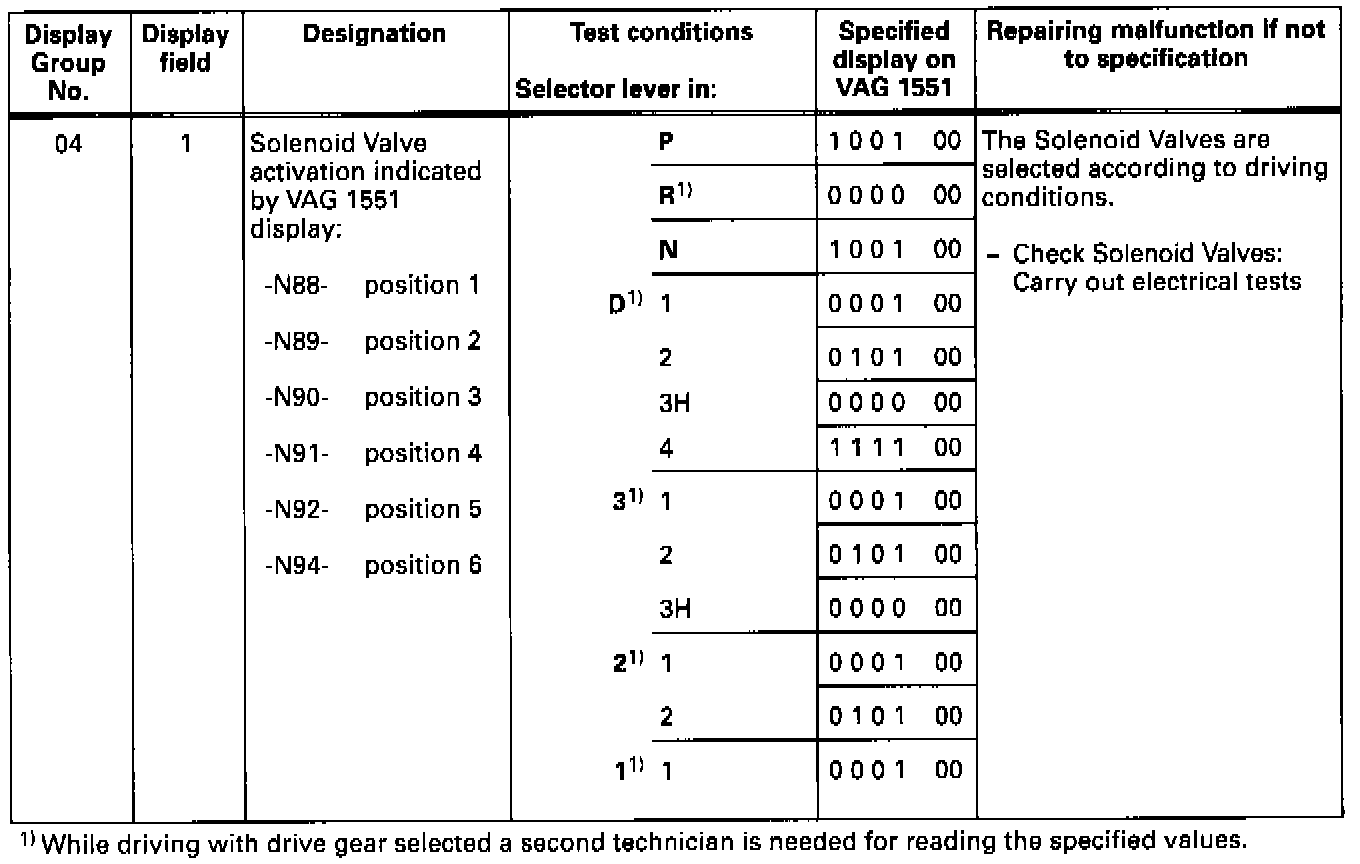

096 Transmissions From 1/93 View 1:
096 Transmissions From 1/93 View 2:
096 Transmissions From 1/93 View 3:
