Home >> Volkswagen >> 1994 >> Golf III (1H1) L4-2.0L (ABA) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures >> Normal Scan Data Values >> Scan Data Value Tables >> Display Group 03

Display Group 03

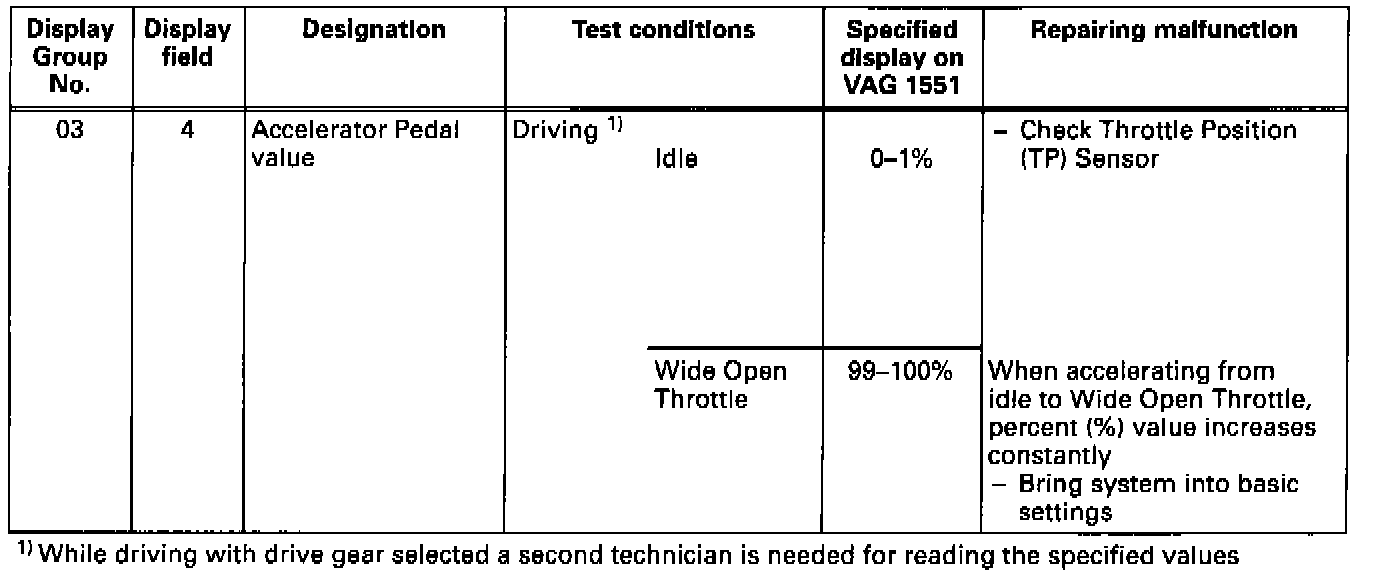

Display Group 03 View 1:

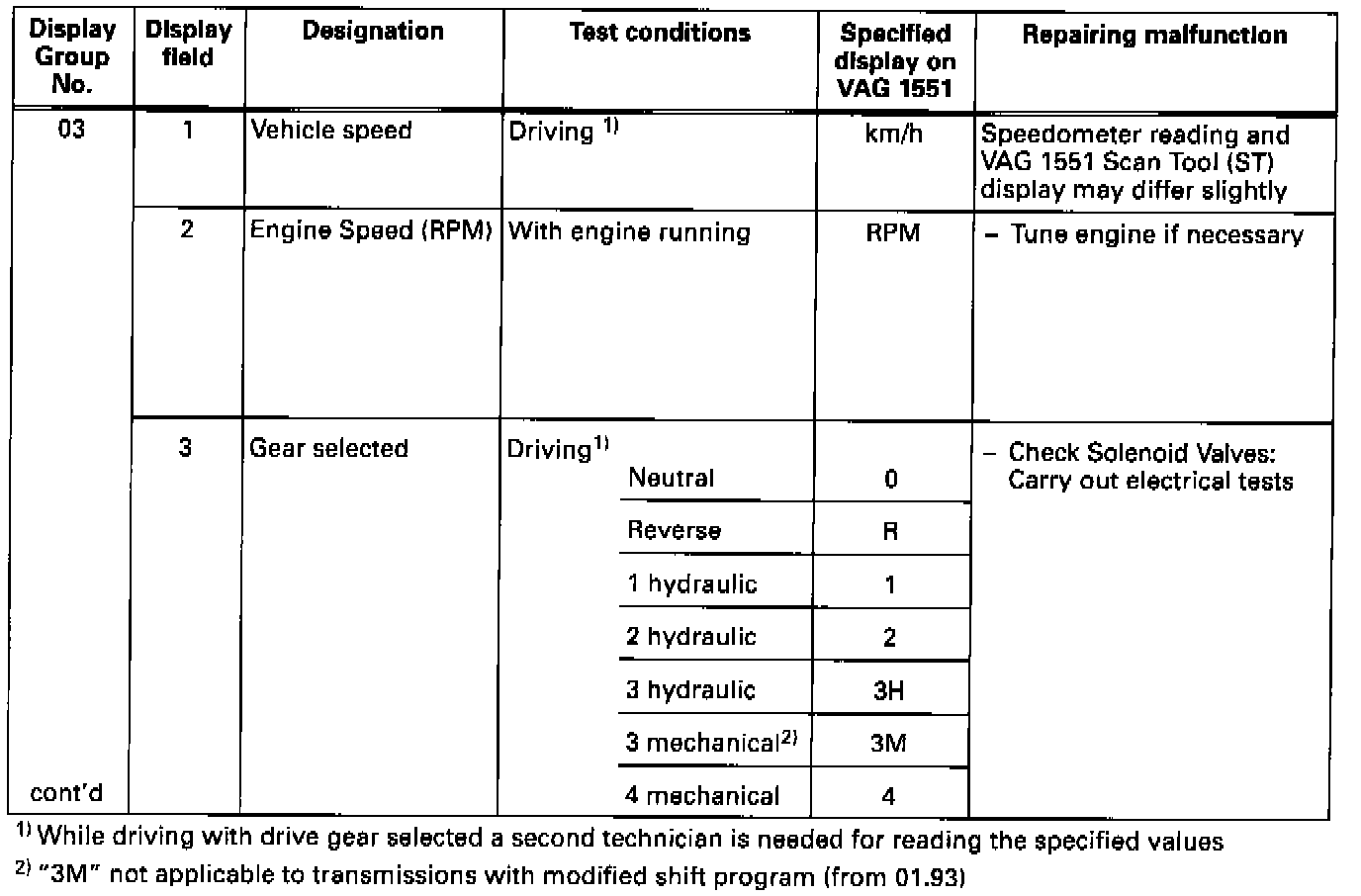

Display Group 03 View 2:
