Golf III (1H1) L4-2.0L (ABA)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Electrical Test Tables (Pinout Charts)
>>

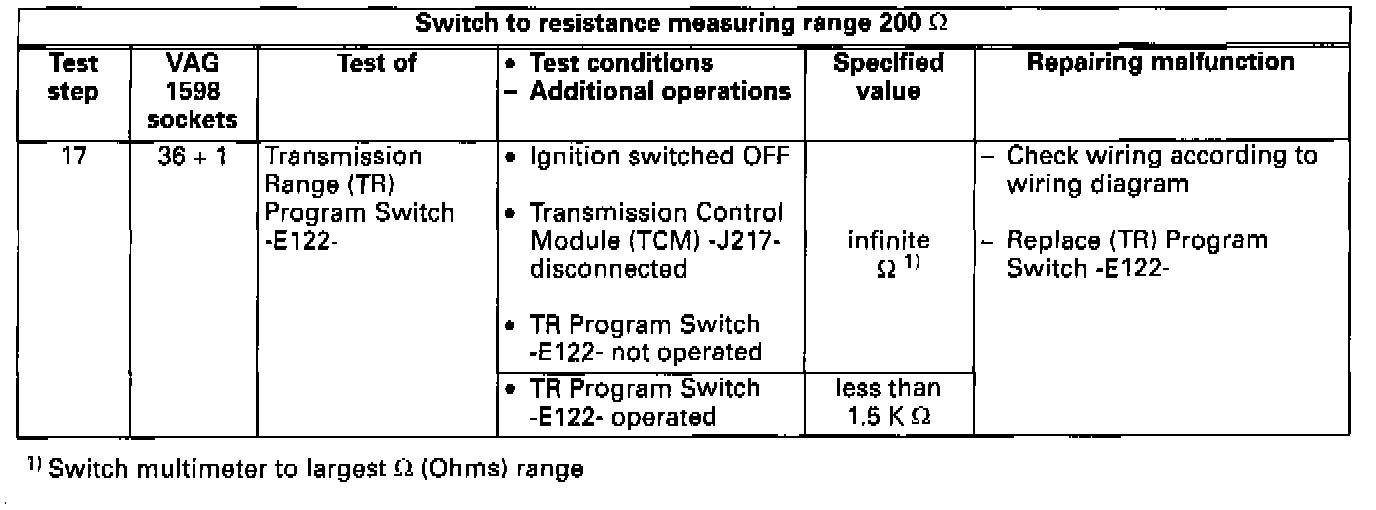

Table J - Test Step 17
Table J - Test Step 17
