Home >> Volkswagen >> 1994 >> Golf III (1H1) L4-2.0L (ABA) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Electrical Test Tables (Pinout Charts) >> Table C - Test Steps 3 - 4

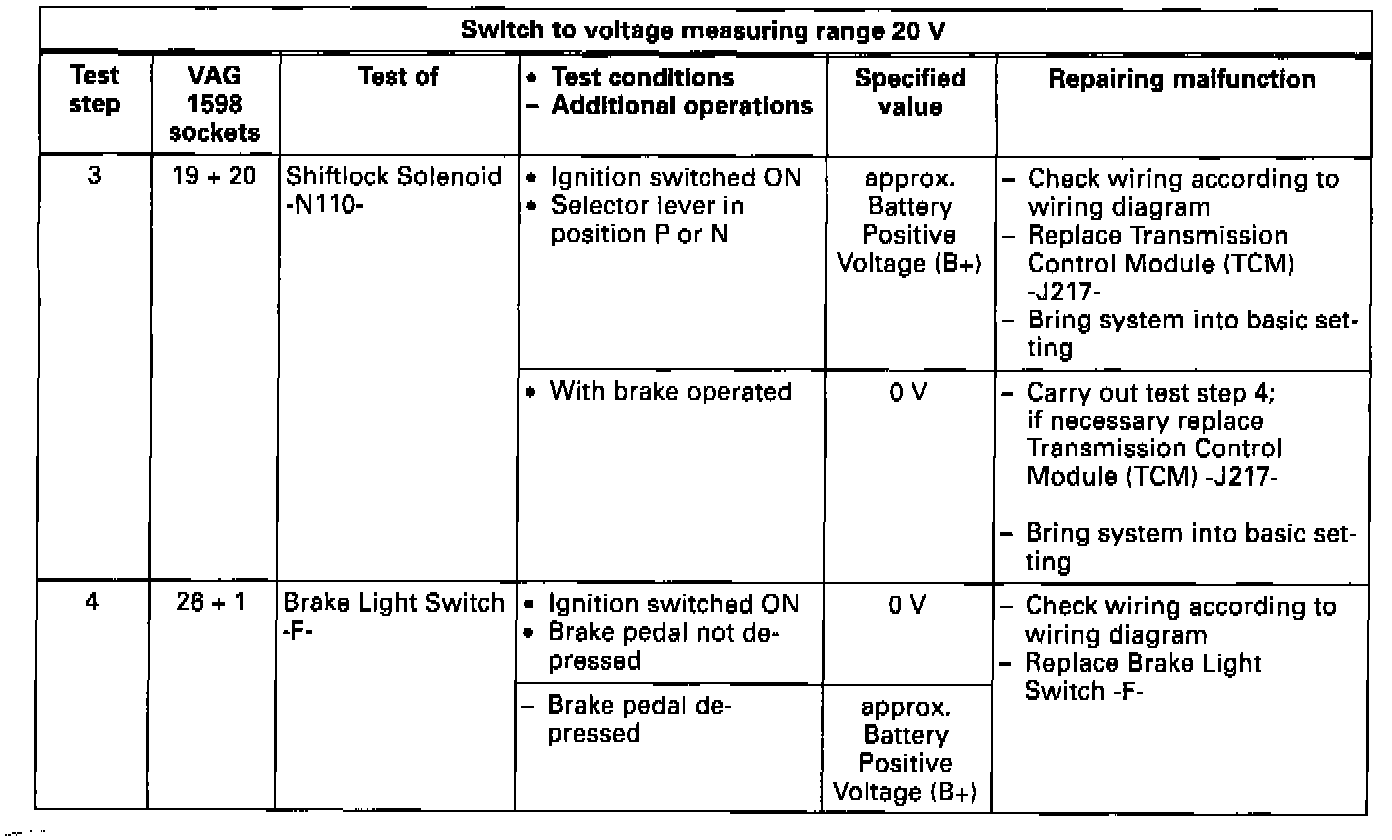

Table C - Test Steps 3 - 4
