Connector Views

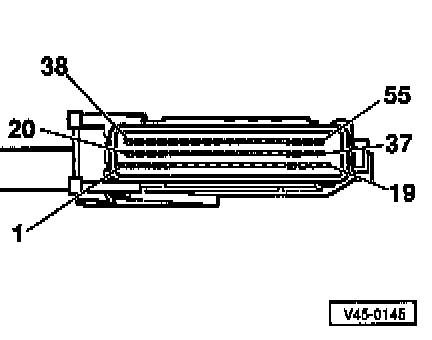

Connector:

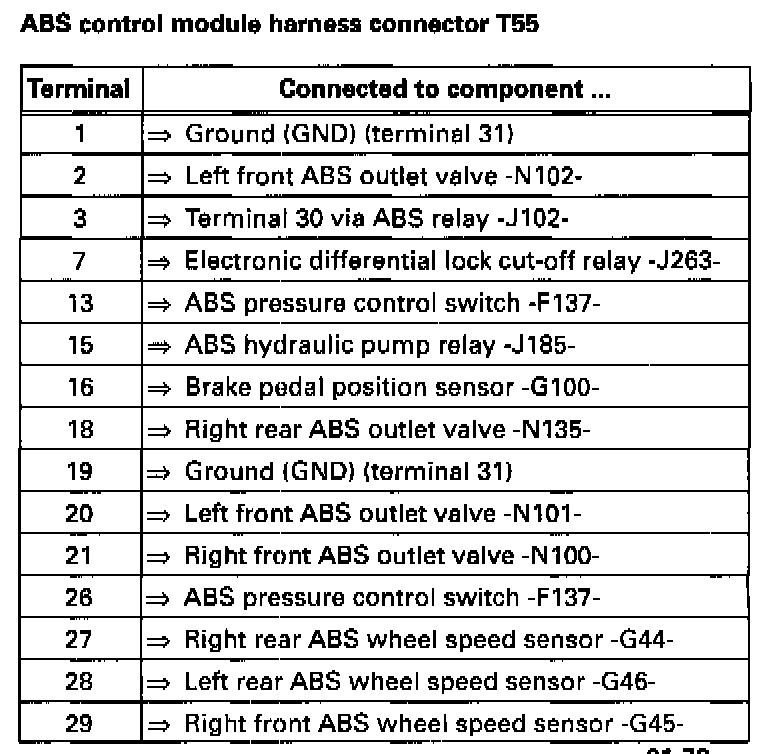

Terminals 1 - 29:

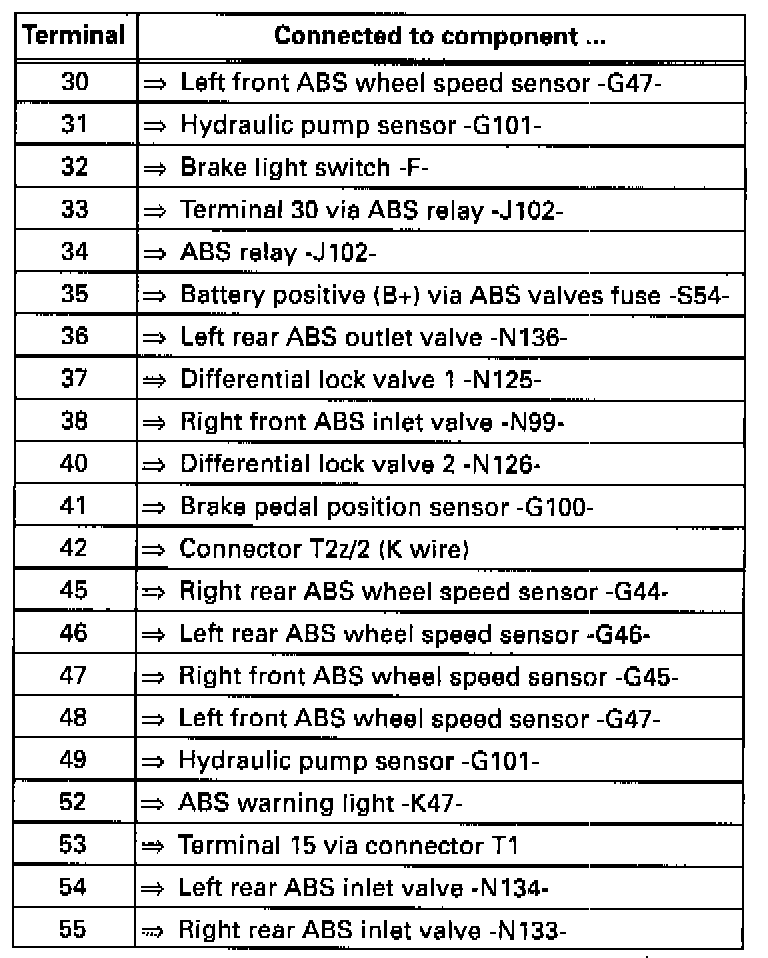

Terminals 30 - 55:





NOTE: All terminals not listed are not assigned.
