Catalytic Converter: Diagrams

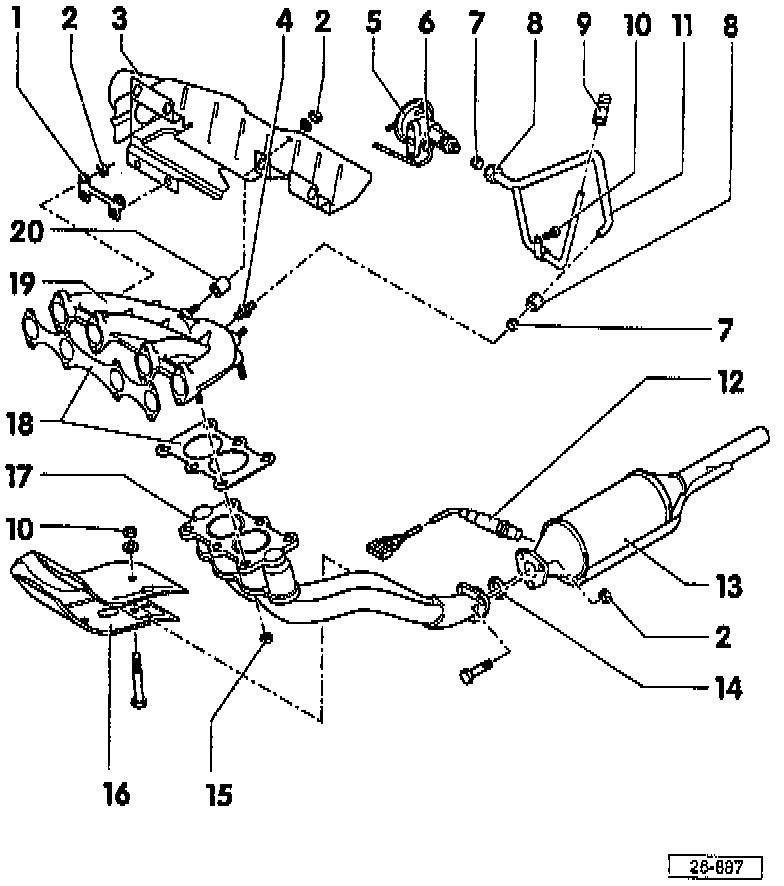

LEGEND
1 Bracket
2 Heat Shield Nut
3 Heat Deflector
4 Union
5 EGR Valve (If Equipped)
6 EGR Temperature Sensor (If Equipped)
7 Fitting
8 Gland Nut
9 Cap (If Equipped)
10 Bolt
11 CO Tap Tube (If Equipped)
12 Heated Oxygen Sensor (H02S)
13 Three Way Catalytic Converter (TWC)
14 Seal
15 Nut
16 Heat Shield
17 Front Exhaust Pipe
18 Gasket
19 Exhaust Manifold
20 Spacer Bushing
