Electronic Brake Control Module: Service and Repair

Control Module, Removing And Installing
Location:
- Up to 01.93 In left front footwell under floor covering in front of passenger seat.
- From 01.93 under rear seat, right side.





NOTE: Switch off ignition before disconnecting and connecting connectors.

Removing
- Fold up rear seat.
- Press control module securing clips together and pull out.
- To pull connector off control module, release control module locking bar.

Installation
- Install in reverse order.

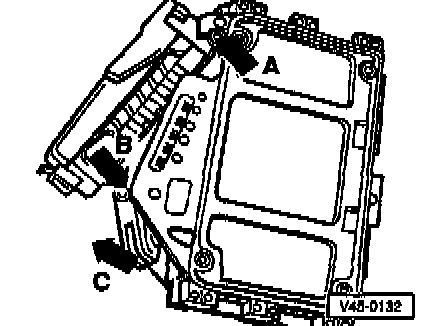

- Engage connector catch in control module slots (arrow A), press connector on (arrow B) and secure with locking bar (arrow C).
