Power Trunk / Liftgate Lock Actuator: Locations

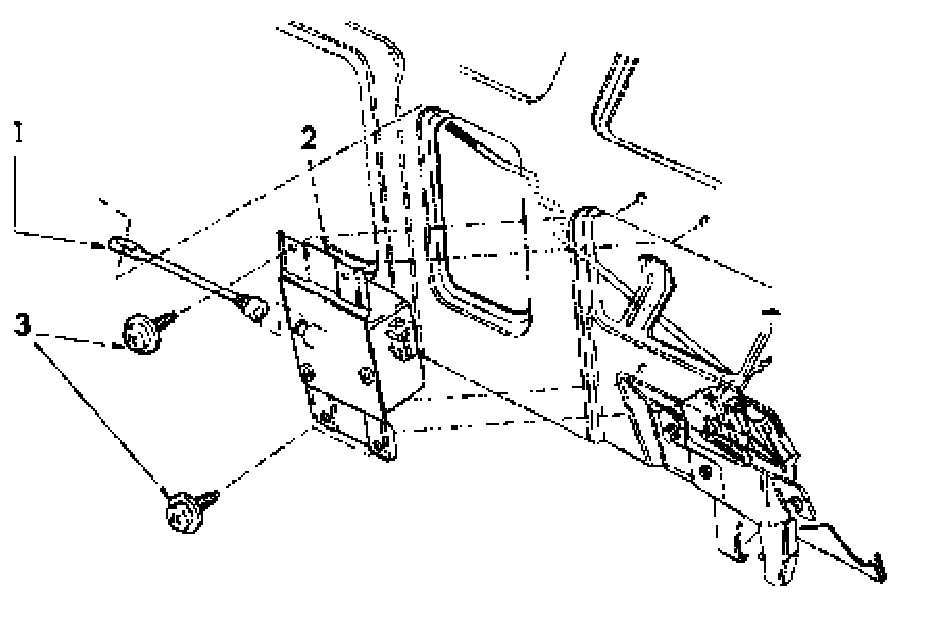

Actuator for remote rear lid release, assembly
1
- Push rod
-
Orange
2
- Actuator
-
To remove, push rod -1- must be disconnected
3
- Screws
-
2 Nm (18 in. lb)
