Rabbit Convertible L4-1715cc 1.7L SOHC
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Manual Transmission/Transaxle
>>
Testing and Inspection
>>
Troubleshooting Chart
>>
Diagnosis By Symptom
>>
Grinding Noises When Engaging
Grinding Noises When Engaging

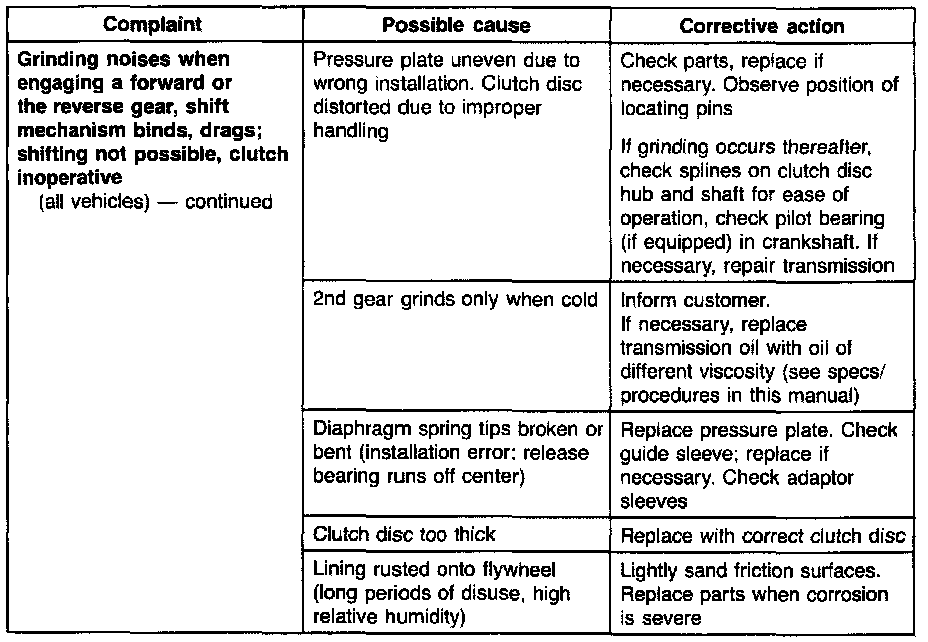

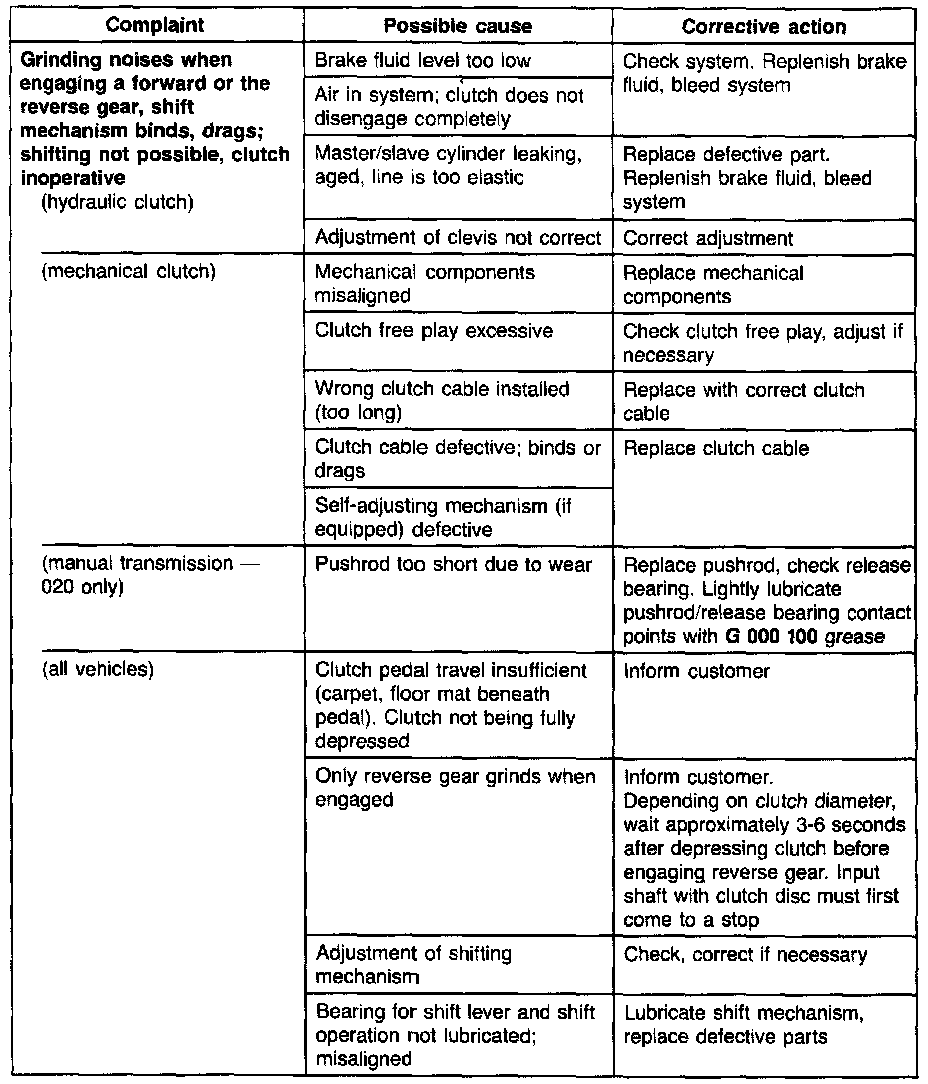

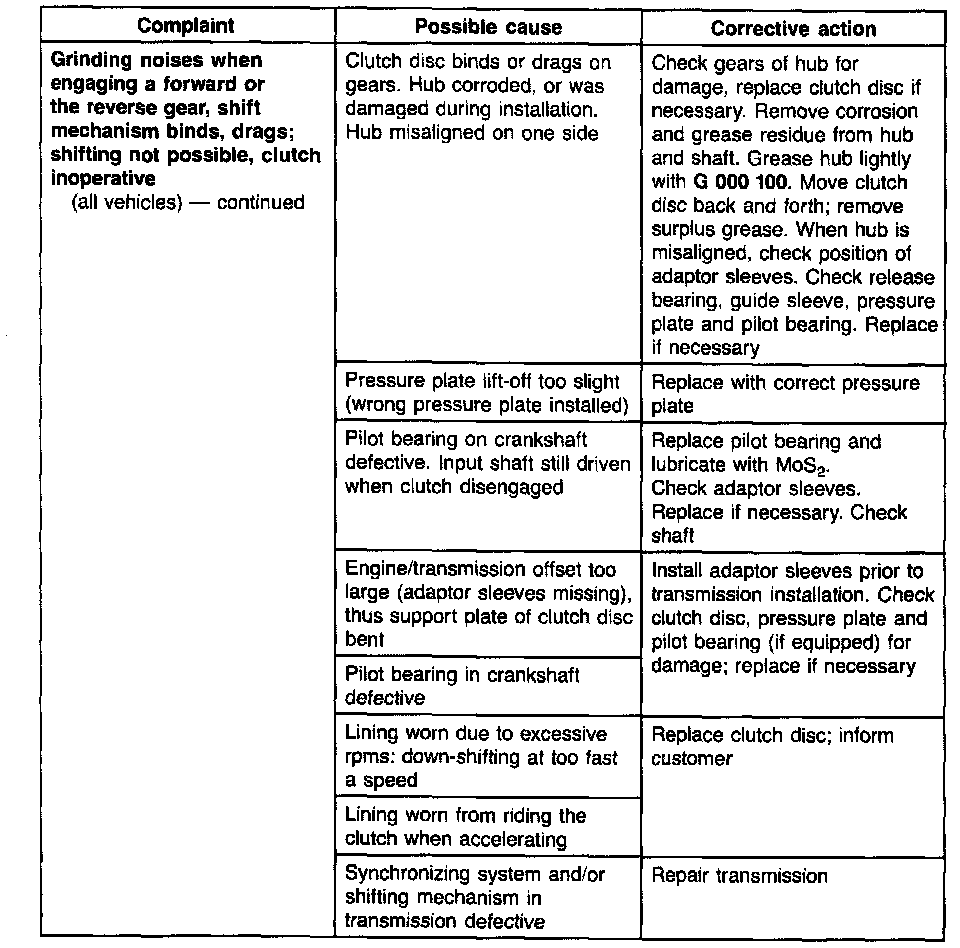

Troubleshooting Chart:
Troubleshooting Chart:
Troubleshooting Chart:
