Parking Lock Rod and Kickdown Lever, Modification

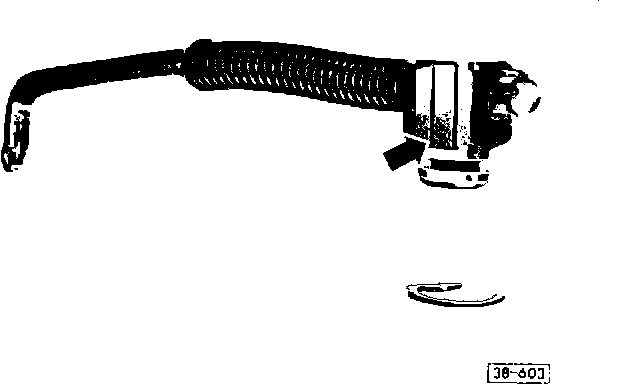

FIGURE 19 - PARKING LOCK OPERATING ROD, MODIFICATION:

With modified operating rod (on hexagon, arrow), parking lock engagement lever is secured with only one circlip

FIGURE 20 - KICKDOWN VALVE OPERATING LEVER, MODIFICATION:

Kickdown valve operating lever has been flattened slightly at contact surface A

Note

New kickdown valve operating lever can be installed in previous transmissions, but earlier-type operating lever must not be installed in transmissions with new kickdown valve.
