85-93 Rabbit/Cabriolet/Scirocco
85-93 Rabbit/Cabriolet/Scirocco

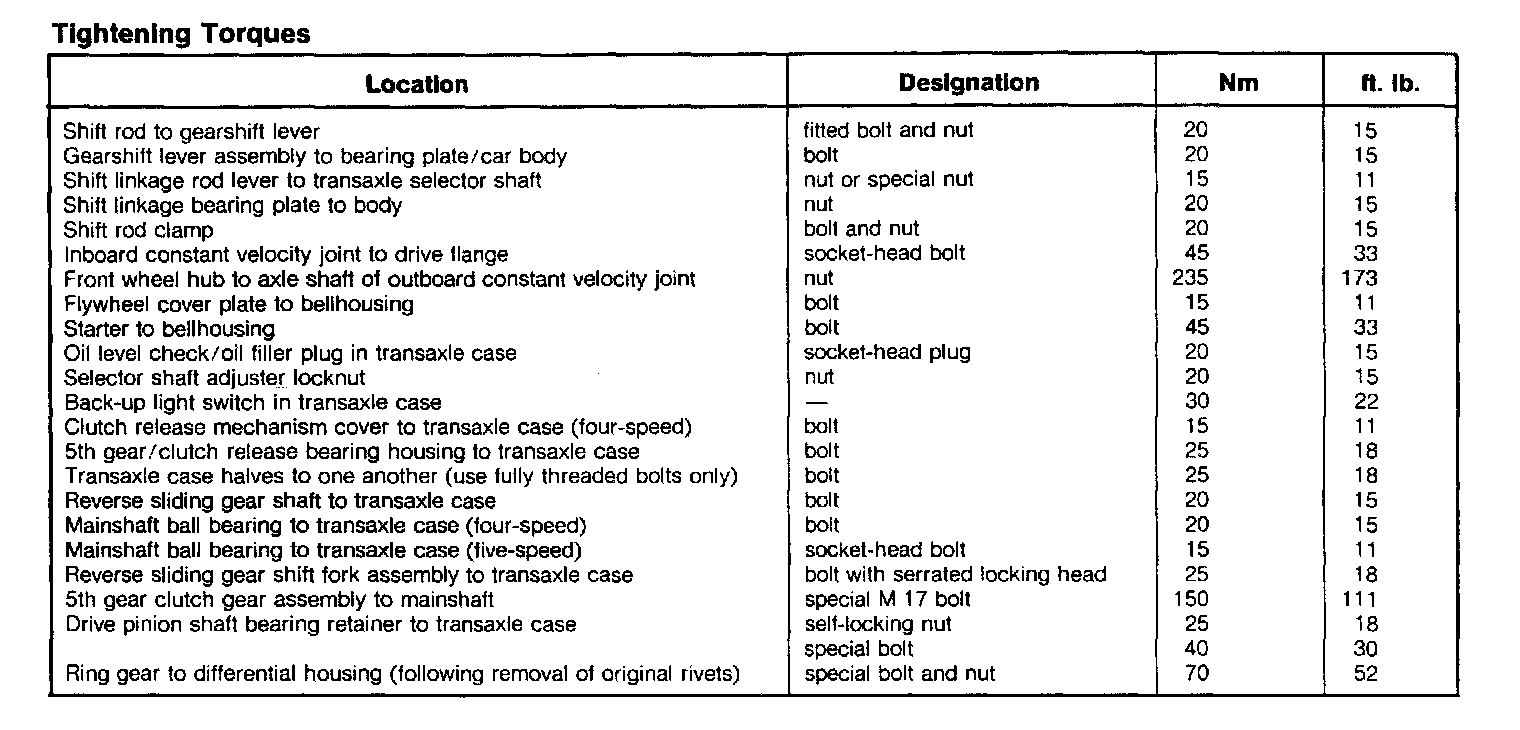

Manual Transmission Torque Specifications
Torque Specifications:
