Home >> Volkswagen >> 1984 >> Rabbit Convertible L4-1715cc 1.7L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Drive Belt >> Belt Tension Specifications - New Belts

Belt Tension Specifications - New Belts

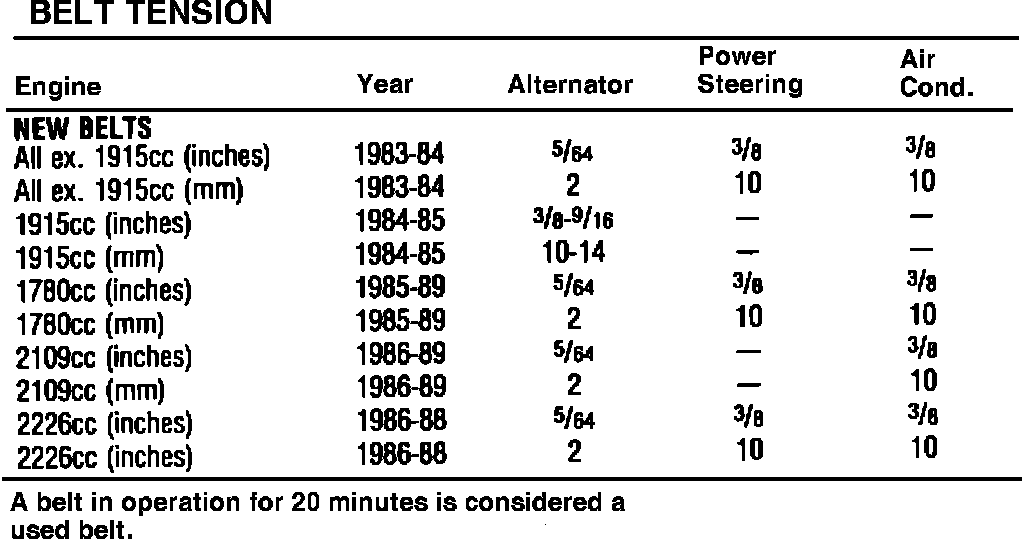

Belt Tension Specifications:
