Tracks 24-47
Diagrams By Track Number

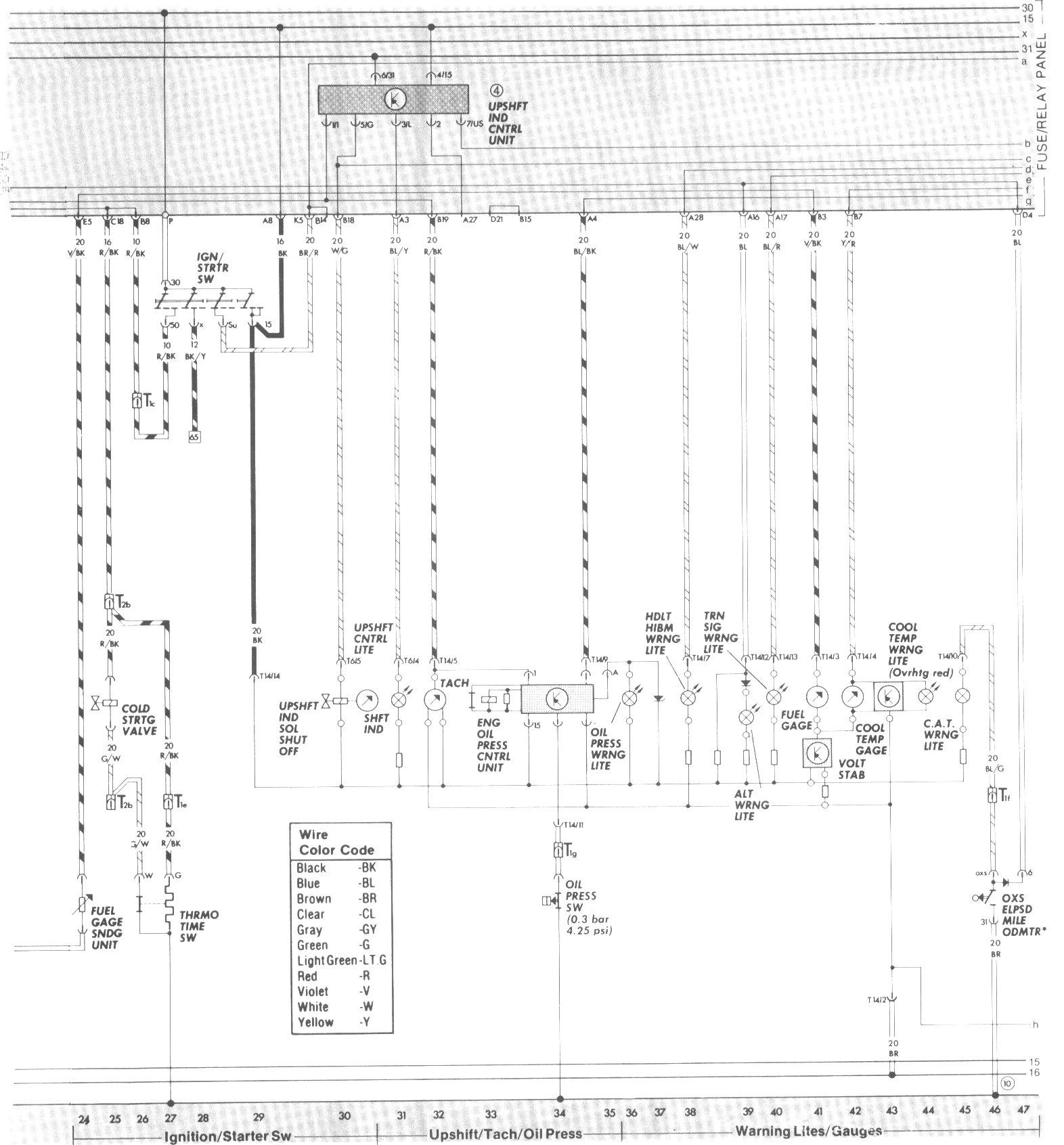

Tracks 24-47:

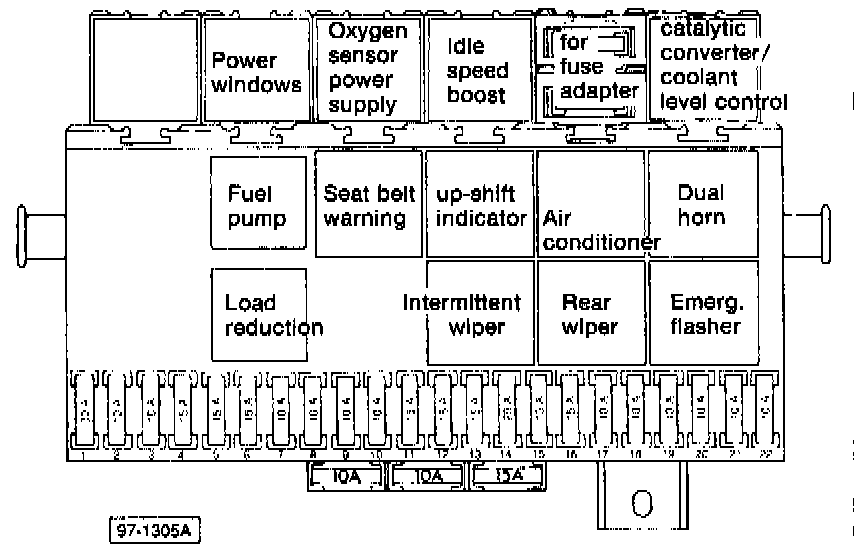

Fuse And Relay Locations:
Track Continuations
Previous Diagram Tracks 1-23
Next Diagram Tracks 48-71
To Refer to
65 Tracks 48-71 Tracks 48-71
