Rear Hatch - Hinge Gasket Material, Corrosion Protection
84VW02Applies To RABBIT
Group
55
Subject
Rear Hatch
Part Identifier 55 66
Key Points
Hinge gasket material and corrosion protection
C
Number
84-01
January 18, 1984
The gasket used under the rear hatch hinges has been changed from foam to a butyl rubber and corundum composition.
The new gasket, Part No. 191 827 365, has been installed in production as of 8/83, VIN EV 000 013.
Note

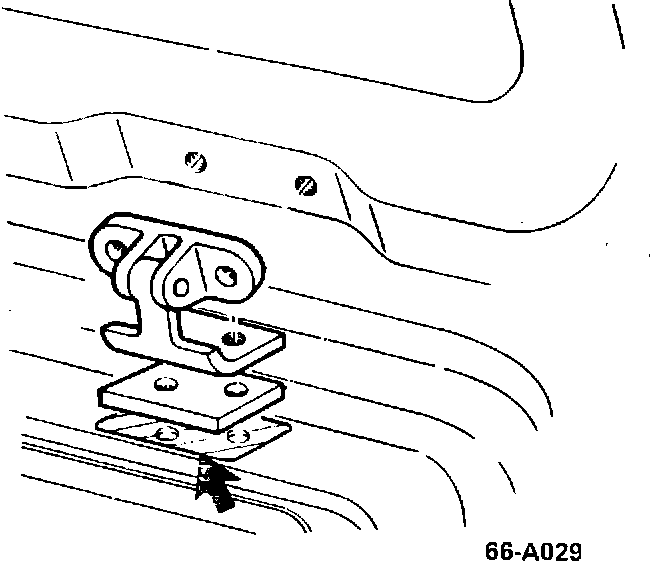

During repairs in this area, a corrosion protective undercoating should be applied on the hinge mounting surface (arrow).
CAUTION Part numbers are listed for reference only. Always consult with the Parts Dept. for latest information.
