Universal Flywheel - Has New Timing Markings

83VW03
Applies To RABBIT/PICKUP

1983 Models
Group


13
Subject:

Flywheel

Part Identifier 1360
Key Points

Universal type has new timing markings

B 006
Number

83-01

January 28, 1983

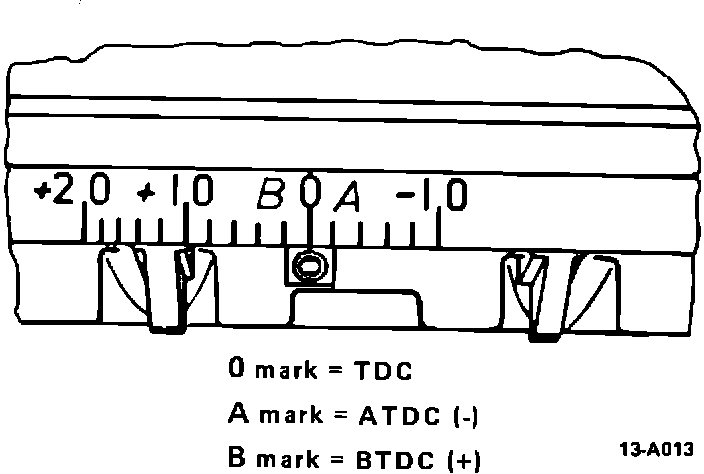

Universal flywheel will be installed on Westmoreland produced vehicles with 200 mm clutch on an intermittent basis. New flywheel has timing degree scale in place of previous single timing notch. If using timing light to set timing, line up pointer with degree mark (specified on underhood sticker) on flywheel.. Scale on flywheel reads in 2~ increments..
