Steering Wheels - Modification, Removal and Installation

89vw09

GROUP

48

NUMBER

89-01 November 30, 1989

MODEL(S):

Rabbit/Jetta/Pickup up to m.y. 1984
SUBJECT:

Modified steering wheel, Adapter sleeve, removing/installing
Beginning in August 1988, steering wheels with modified inner splines became available. The new wheel allows a more accurate adjustment due to an increased number of splines.

The steering column remains unchanged except for the addition of a splined adapter sleeve pressed onto the splines of the steering shaft.

The new steering wheel can be installed in earlier vehicles by first installing the splined adapter sleeve (see page 2 for removing/ installing).



1 Washer

3 mm thick - P/N: N 904 485.01

2 Splined adapter sleeve
P/N: 191 419 514 A

3 Clamping washer

4 Compression spring

5 Contact ring

6 Support ring



Adapter sleeve, removing/installing


Removing

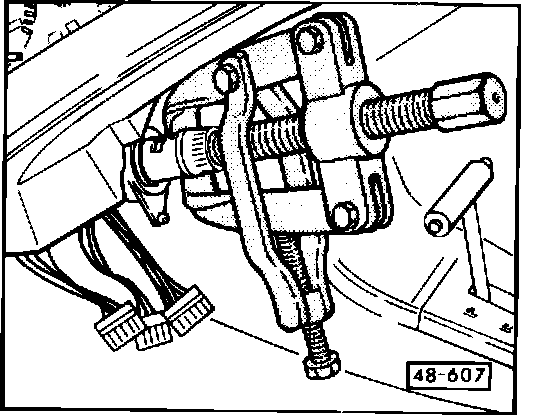

^ remove sleeve using puller with tensioner (e.g. Kukko 204-2)



Installing

^ push sleeve onto steering column and tighten with nut to end of thread

^ remove nut

^ install new washer and tighten nut again until sleeve is tight
