Clutch/Flywheel Assembly - Repair/Replacement
87VW04Applies To RABBIT, SCIROCCO,
JETTA, CONVERTIBLE, PICKUP
Group
30
Subject:
Clutch/Flywheel Assembly
Part Identifier 13 60, 30 52, 30 56
Key Points
Repair/Replacement recommendations C
Number
83-01
January 12, 1983

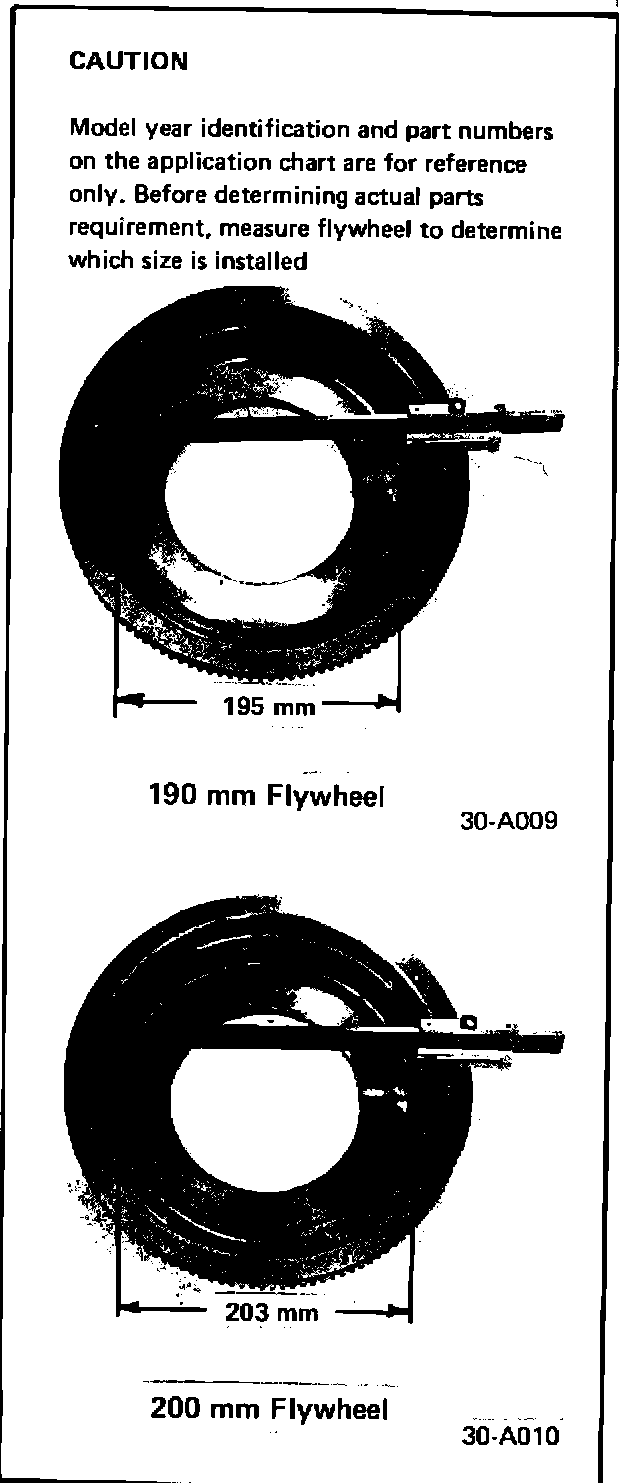

When replacing or repairing clutch/flywheel components (i.e., flywheel, pressure plate, disc), it is strongly recommended that 190 mm parts be upgraded to latest 200 mm version.. For proper identification of components, refer to the accompanying application chart
FLYWHEEL, CLUTCH PRESSURE PLATE and DISC
Rabbit-Scirocco-Jetta
APPLICATION CHART - ORIGINAL EQUIPMENT
Rabbit/Scirocco/Jetta with Gasoline Engine, 1979-1980
190 mm dia. Flywheel
FLYWHEEL CLUTCH PRESSURE PLATE CLUTCH DISC
067 105 271 A 067 141 025 E 055 141 031 D
Rabbit/Pickup/Scirocco/Jetta with Gasoline Engine, 1981-1982 200 mm dia. Flywheel
FLYWHEEL CLUTCH PRESSURE PLATE CLUTCH DISC
067 105 271 H 067 141 025 H 055 141 031 M
Some 1979 Diesel models only 190 mm dia. Flywheel
FLYWHEEL CLUTCH PRESSURE PLATE CLUTCH DISC
067 105 271 A 067 141 025 E 068 141 031 F
All Diesel 1979-1982 (except above) 200 mm dia. Flywheel
FLYWHEEL CLUTCH PRESSURE PLATE CLUTCH DISC
067 105 271 H 008 141 025 068 141 031 R
