Rabbit Convertible L4-1715cc 1.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Engine Specific - Main Wiring Diagrams
>>
Track Diagrams
>>
Tracks 105-114
Tracks 105-114
Diagrams By Track Number

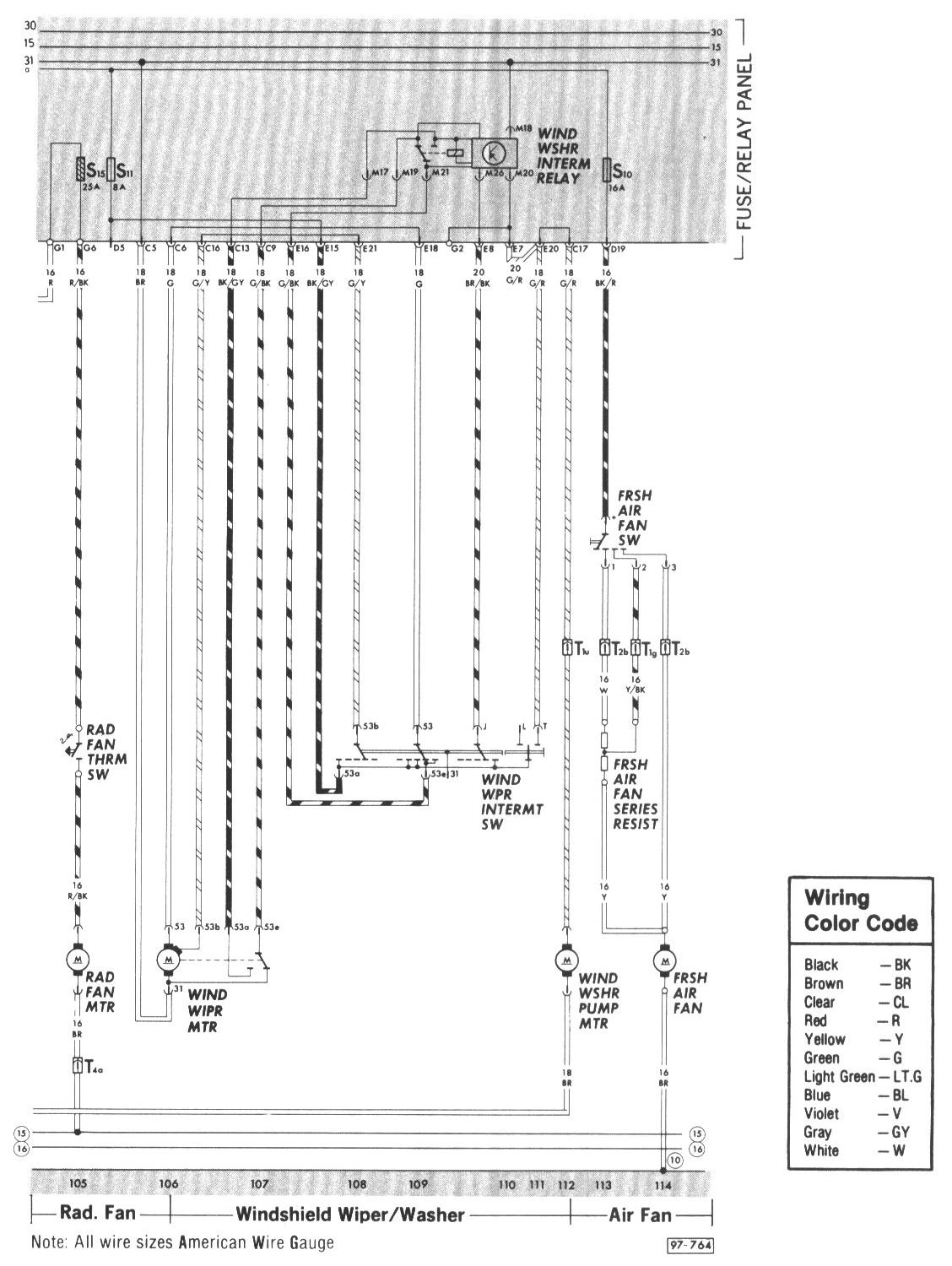

Tracks 105-114:
Fuse And Relay Locations:
Track Continuations
Previous Diagram
Tracks 79-104
