Home >> Volkswagen >> 1982 >> Quantum L4-1715cc 1.7L SOHC >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Clutch, M/T >> 013 Transmission Code

013 Transmission Code

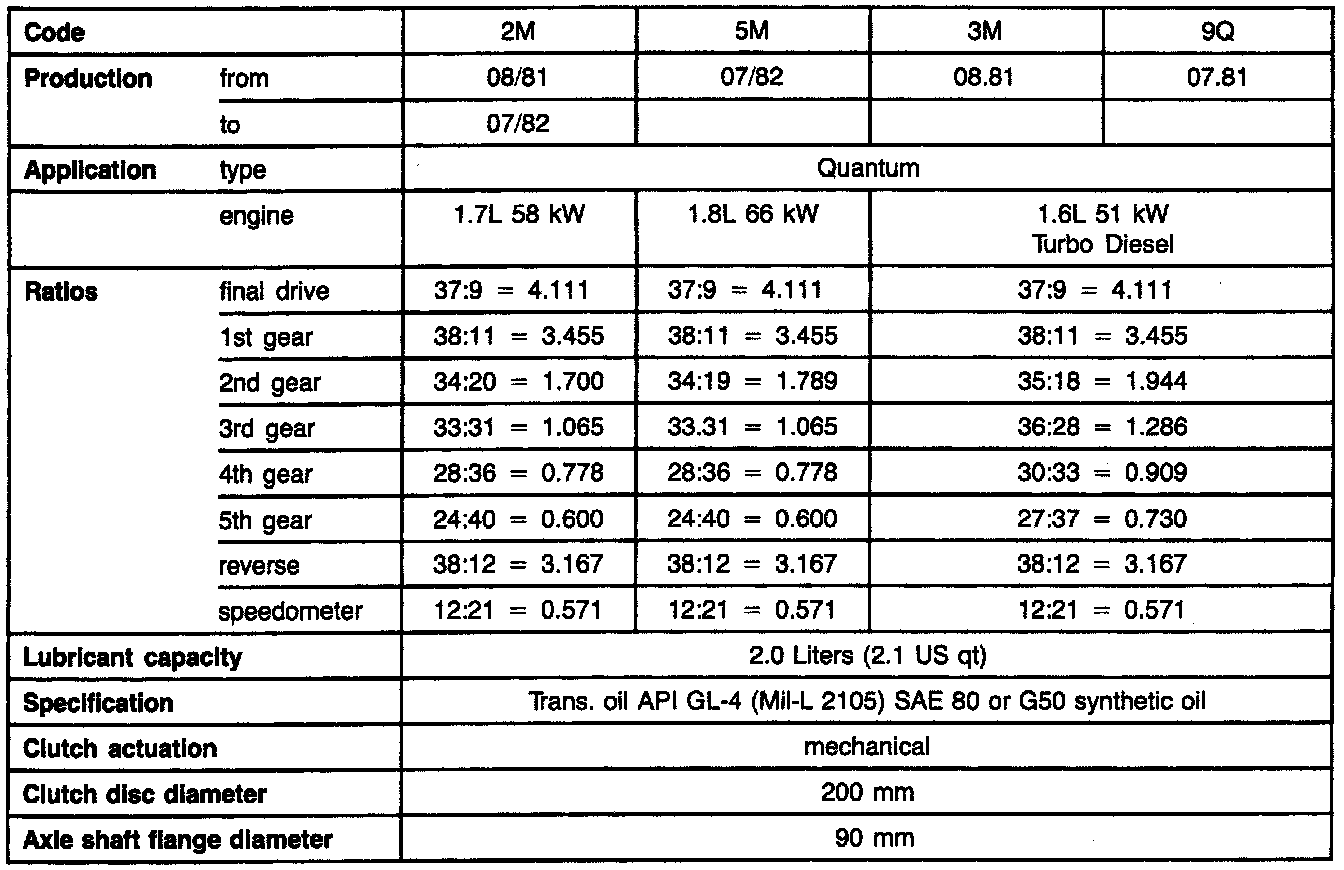

Transmission Technical Data:

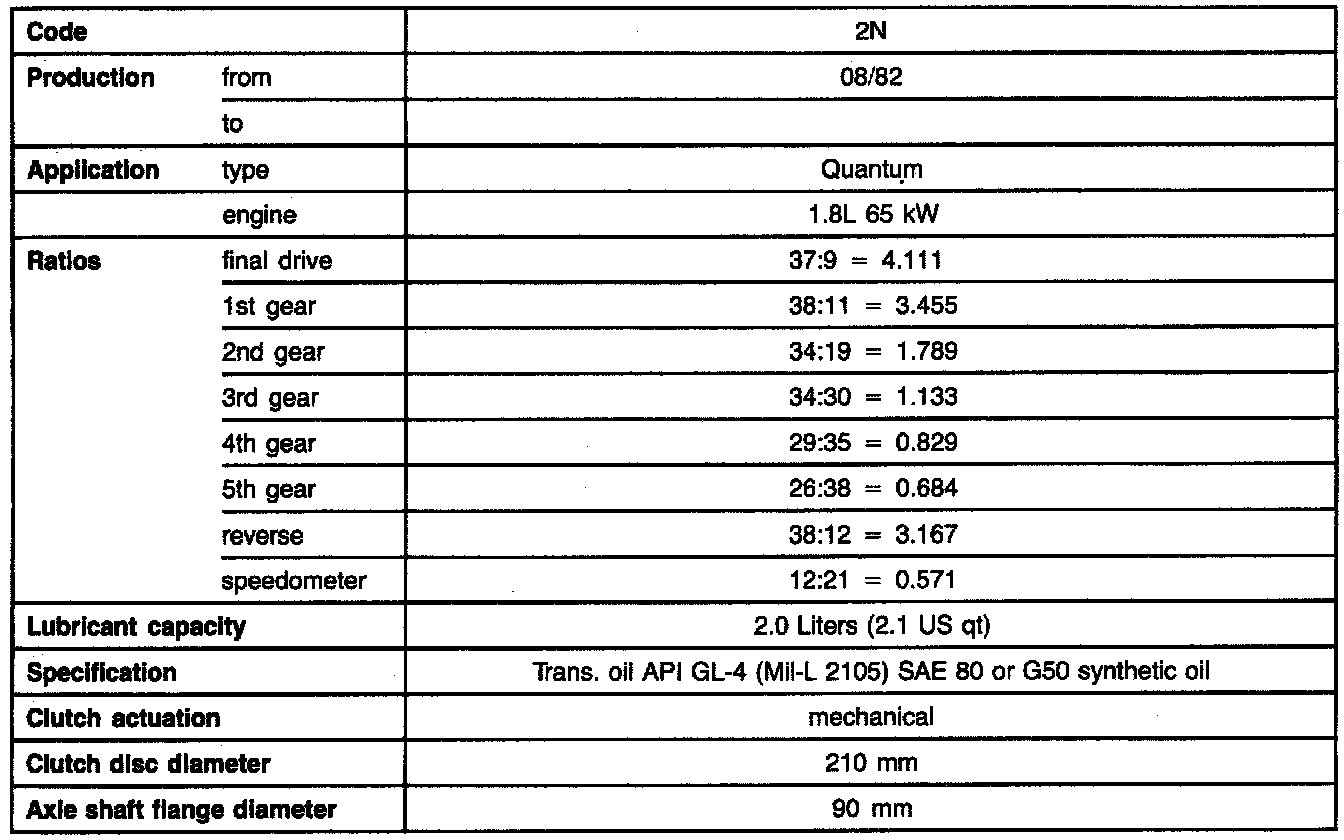

Transmission Technical Data:
