UD
>>
2007
>>
1300 L4-4.7L DSL Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>

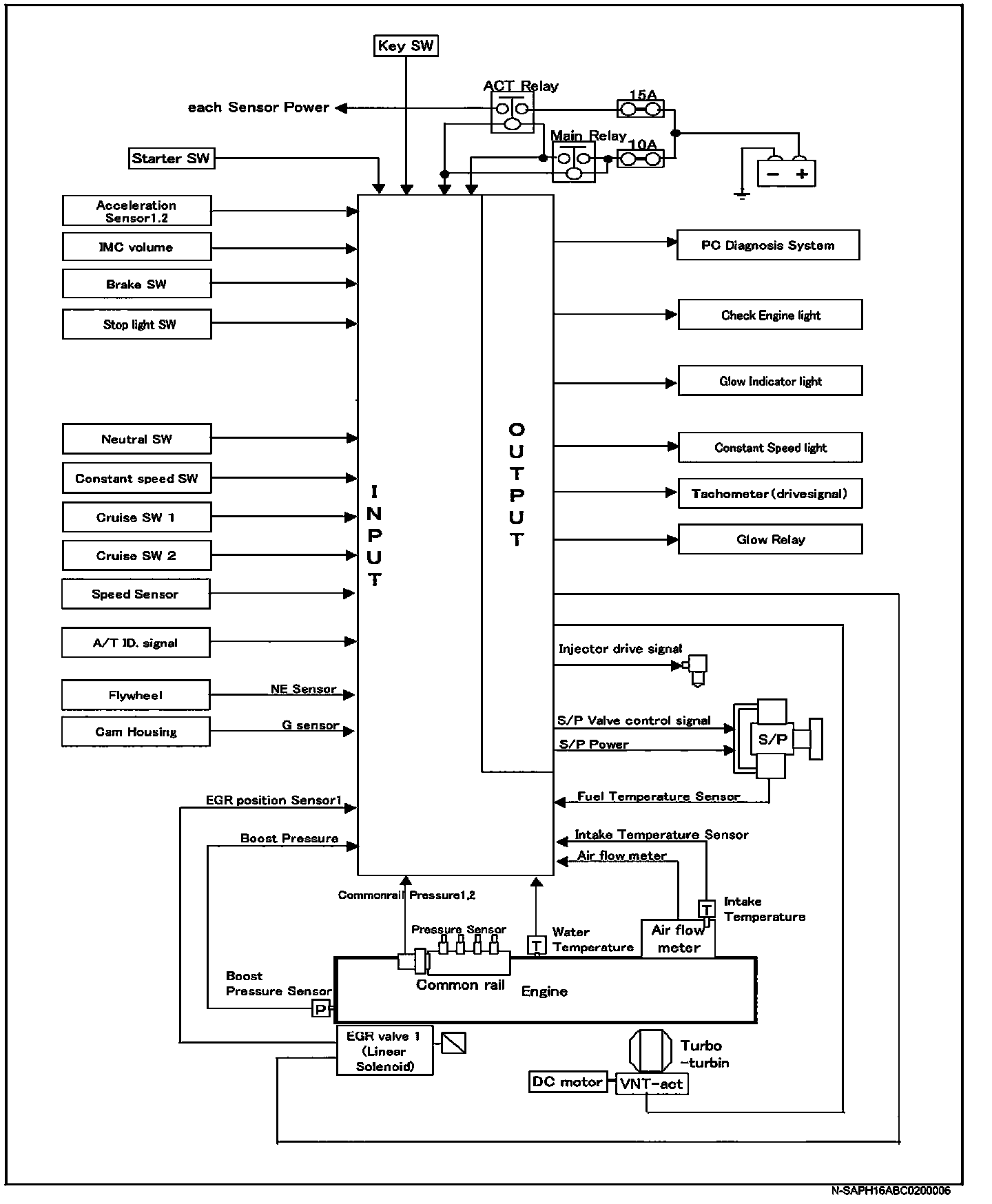

Engine Control Module
Engine Control Module
