P0340

ENGINE SPEED SUB SENSOR







1. CHECK THE VOLTAGE BETWEEN SENSOR TERMINALS.







1. Disconnect the connector of the engine speed sub sensor.
2. Set the starter switch to "ON" position.

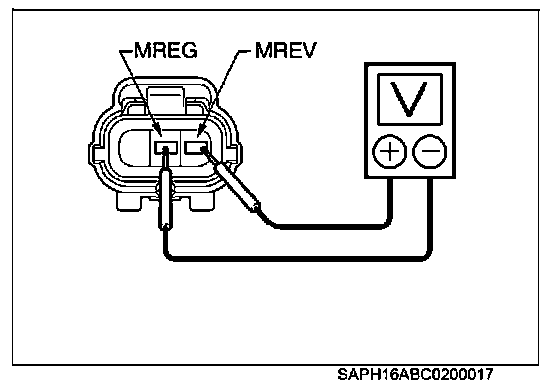

3. Measure the voltage between MREG terminal and MREV terminal of engine speed sub sensor connector. (Vehicle harness side)

Standard: 4.5 - 5.5 V
