Throttle Cable/Linkage: Adjustments

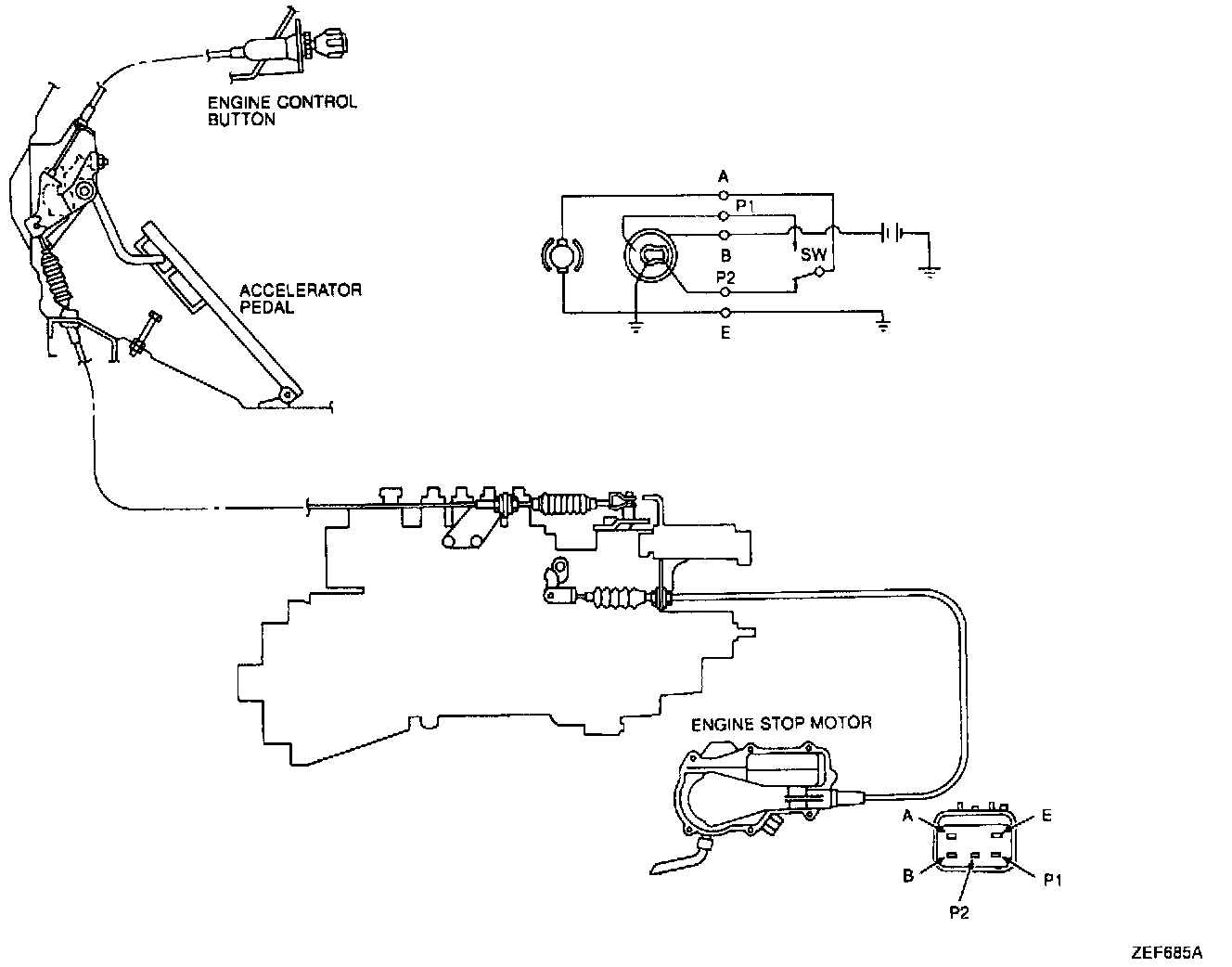

Schematic Diagram:

ADJUSTMENT

ENGINE CONTROL WIRE

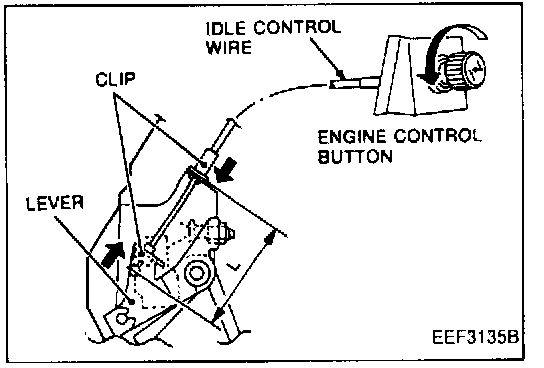

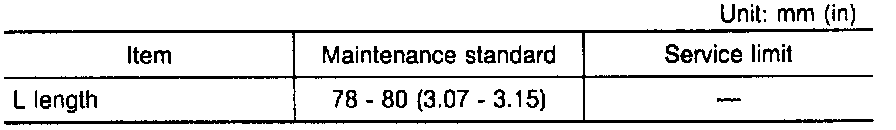

Turn the engine control knob fully counterclockwise and connect the engine control wire to lever.
Securely fit the clips (2 places on the wire end) in the bracket.







ACCELERATOR WIRE

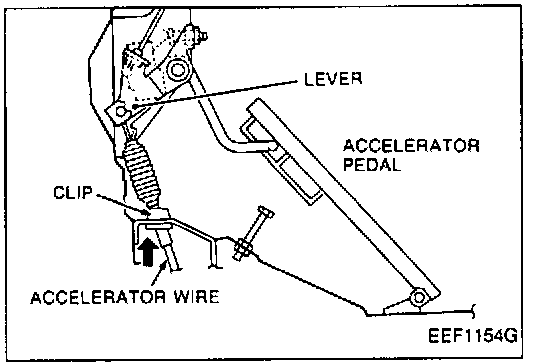

1. Connect one end of the accelerator wire to lever. Securely fit the clip on the wire in the panel.

NOTE: Be careful not to break the boot.

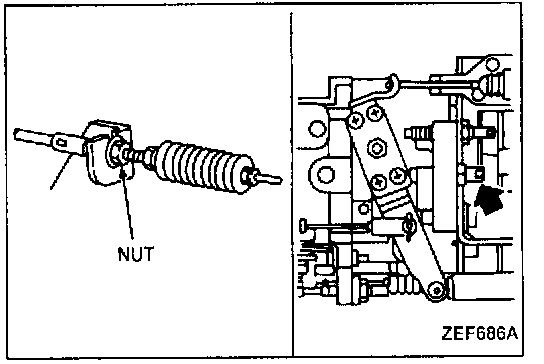

2. Connect the other end of the accelerator wire to the engine side. Check that the control lever of the injection pump touches the stopper bolt and that there is no free play at the wire connection. Then, tighten the nut.

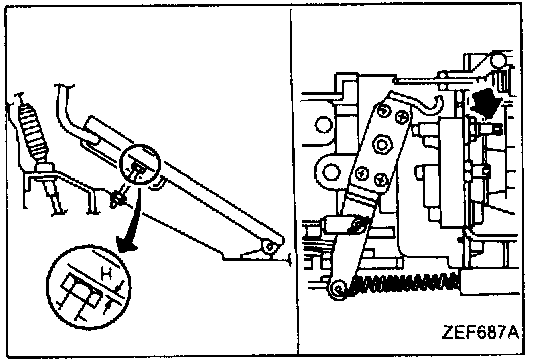

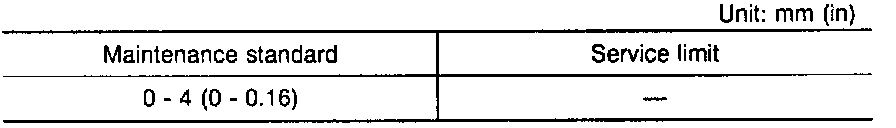

3. Depress the accelerator pedal until the control lever of the injection pump contacts the stopper bolt. While holding the control lever in that position, adjust the clearance between the pedal and stopper to "H" and secure the stopper bolt.
