Installation

INSTALLATION
1. Install the injection pump assembly.

2. Connect the oil tube to the injection pump.

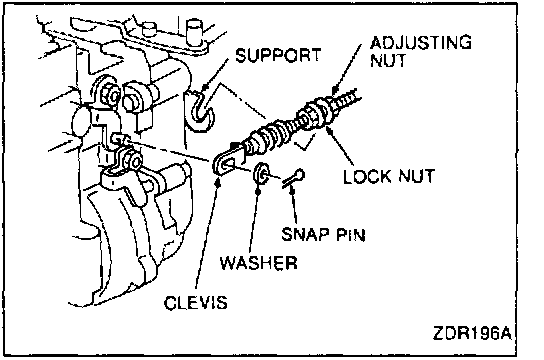

3. Connect the accelerator wire and engine stop wire.
