Installation

INSTALLATION

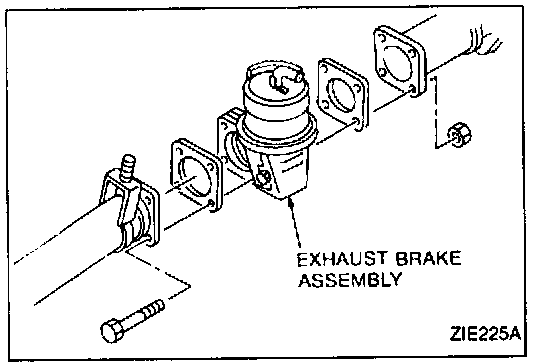

1. Connect the exhaust brake assembly between the exhaust pipes with the gaskets in place.
2. Connect the vacuum hoses.

NOTE: Be careful not to twist the hoses.

3. Start the engine. When vacuum pressure reaches the specified value, turn the exhaust brake switch "ON" to ensure that the exhaust brake operates properly. Also check to be sure there is no air leakage.
