Installation

WIPER / WASHER: WASHER NOZZLE: INSTALLATION; 2013 MY Corolla [07/2012 -]

1. INSTALL WASHER NOZZLE SUB-ASSEMBLY

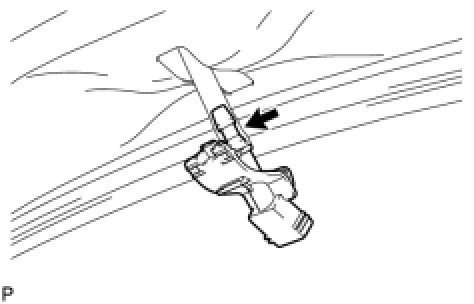

(a) Connect a new washer nozzle sub-assembly to the washer hose.

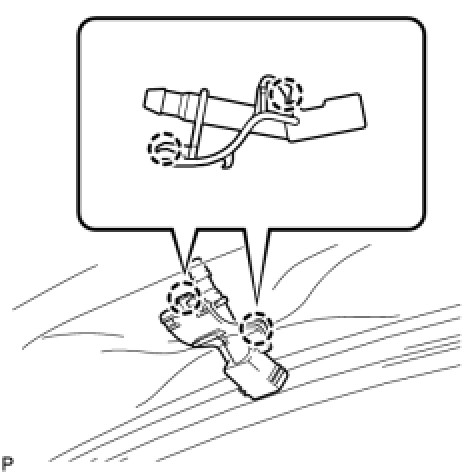

(b) Engage the 2 claws to install the washer nozzle sub-assembly.
