System Diagram

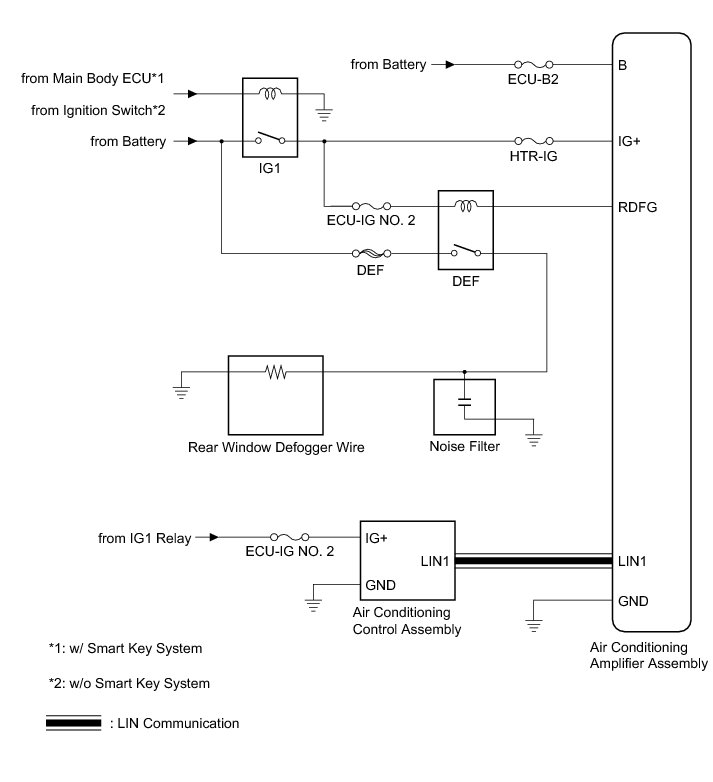

WINDOW / GLASS: WINDOW DEFOGGER SYSTEM (for Automatic Air Conditioning System): SYSTEM DIAGRAM; 2013 MY Corolla [07/2012 -]
