Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Service and Repair >> Overhaul >> Shift and Select Lever Shaft >> Components

Components

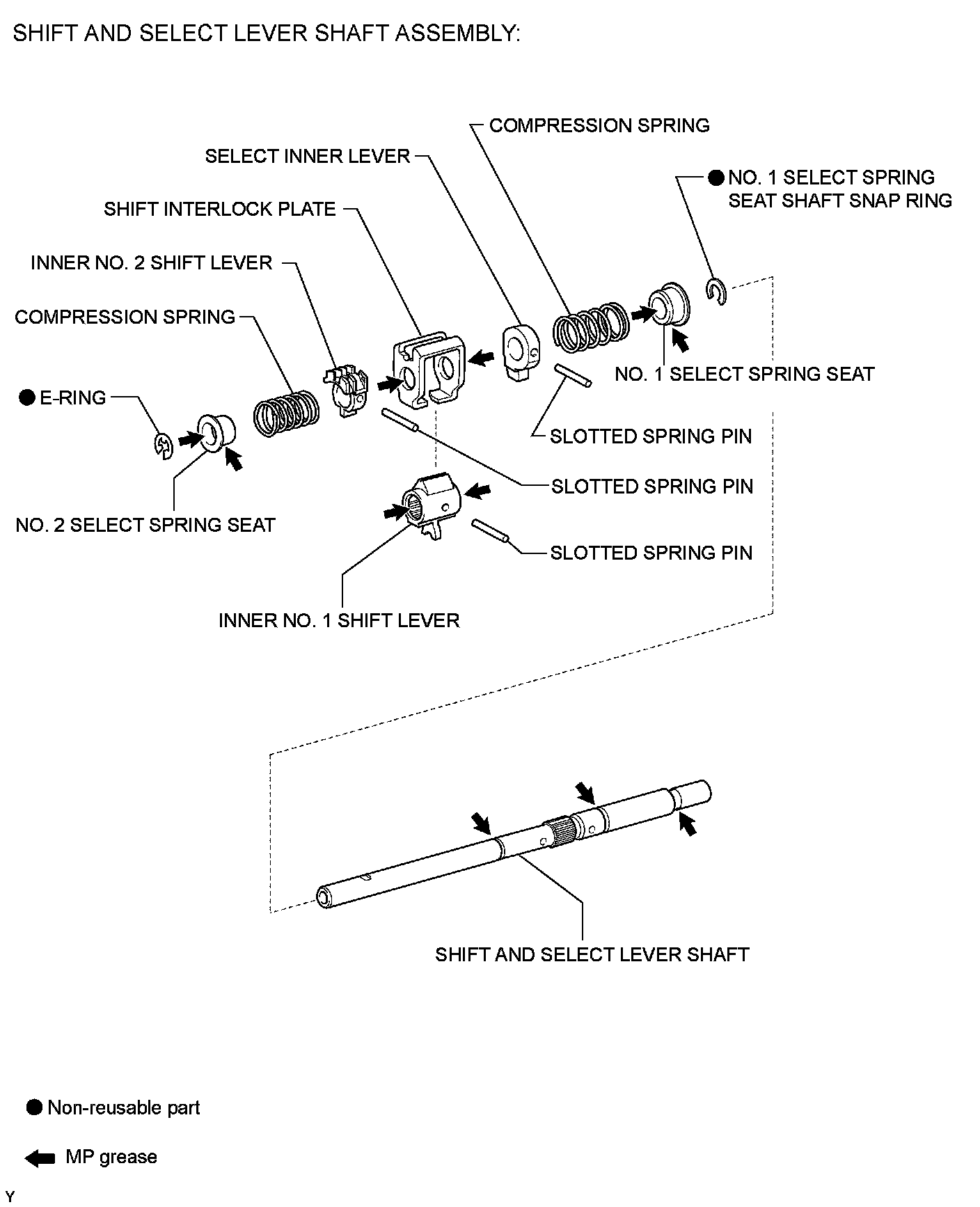

C59 MANUAL TRANSMISSION / TRANSAXLE: SHIFT AND SELECT LEVER SHAFT: COMPONENTS; 2013 MY Corolla [07/2012 -]
