Removal

CLUTCH: CLUTCH MASTER CYLINDER: REMOVAL; 2013 MY Corolla [07/2012 -]

1. DISCONNECT CLUTCH RESERVOIR TUBE

(a) Loosen the clip and disconnect the clutch reservoir tube from the clutch master cylinder assembly.

NOTICE:
Wash off clutch fluid immediately if it comes in contact with any painted surface.

HINT
Use a container to catch the fluid.

2. DISCONNECT CLUTCH LINE

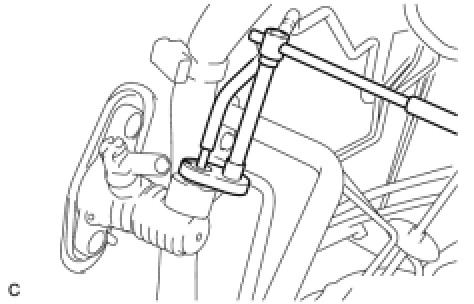

(a) Using a union nut wrench (10 mm), disconnect the clutch line.

HINT
Use a container to catch the fluid.

3. REMOVE CLUTCH MASTER CYLINDER ASSEMBLY

(a) Remove the clip and hole pin.





(b) Remove the 2 nuts and clutch master cylinder.





(c) Remove the clutch master cylinder bracket.
