Automatic Transmission/Transaxle: Locations

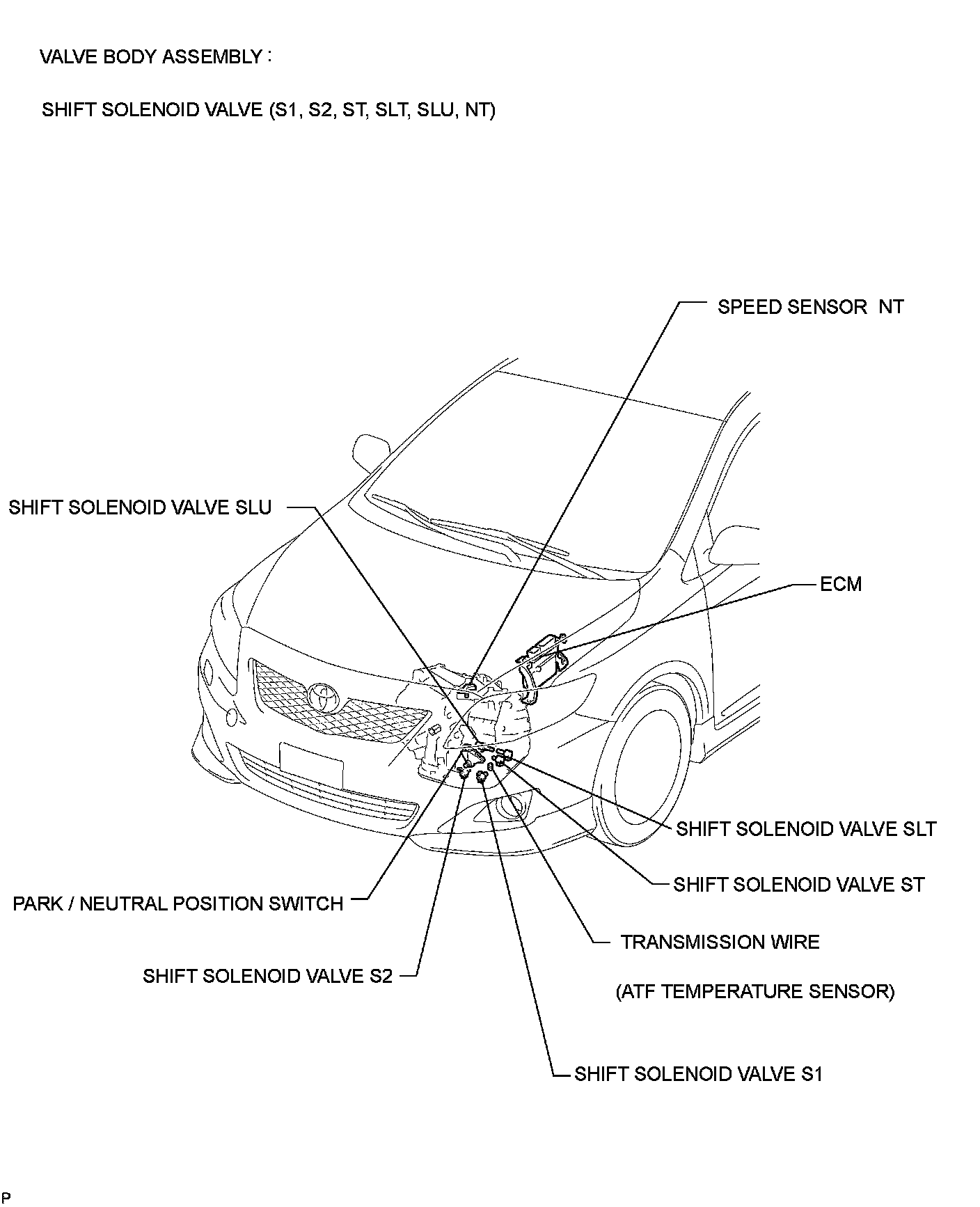

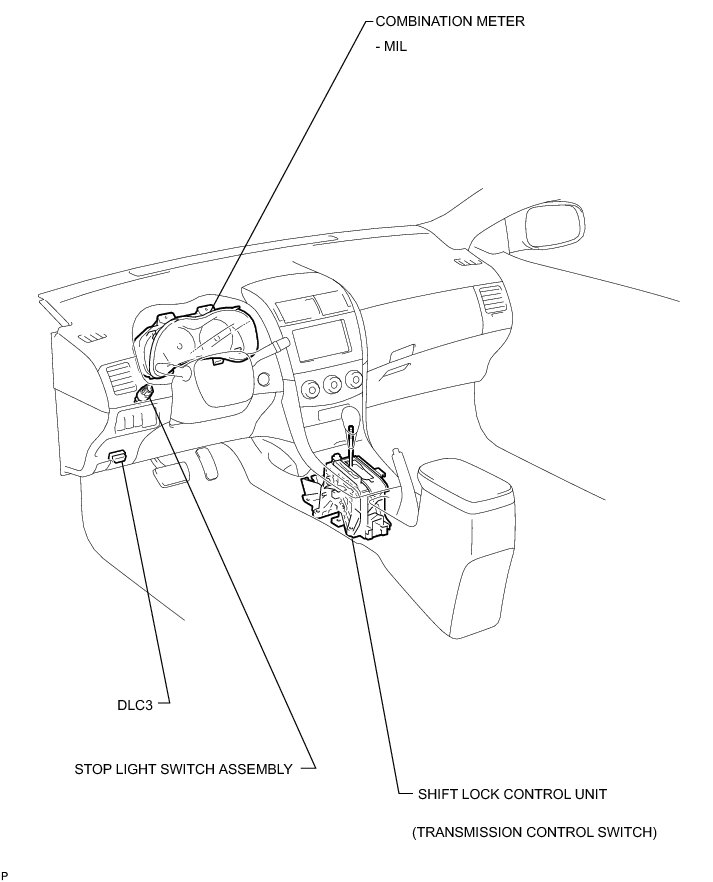

U341E AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION; 2013 MY Corolla [07/2012 -]
