Removal

REAR SUSPENSION: REAR STABILIZER BAR: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE REAR AXLE BEAM DAMPER

(a) Remove the rear axle beam damper.

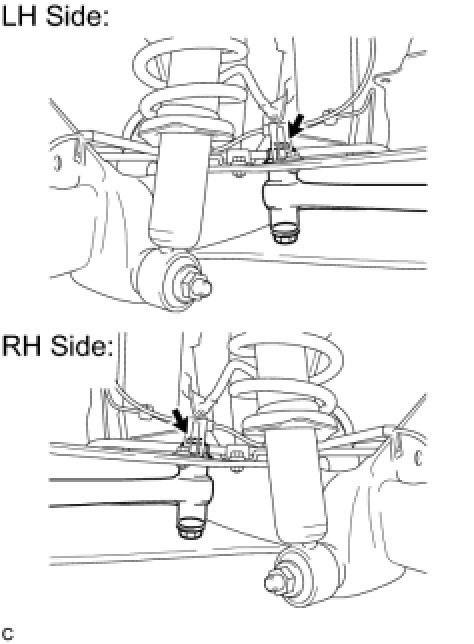

2. REMOVE REAR STABILIZER BAR

(a) Remove the 2 bolts, 2 nuts and rear stabilizer bar.

NOTICE:
Be sure to loosen the nuts.
