Installation

AXLE AND DIFFERENTIAL: STEERING KNUCKLE: INSTALLATION; 2013 MY Corolla [07/2012 -]

1. INSTALL STEERING KNUCKLE

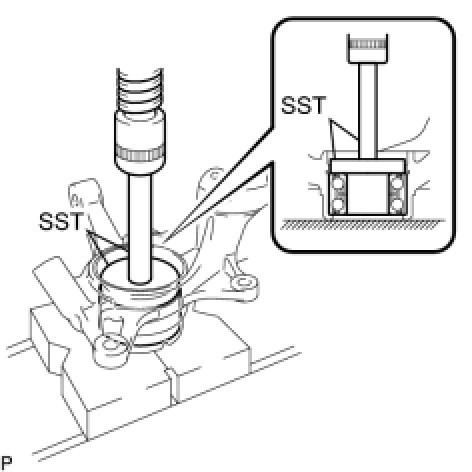

(a) Using SST and a press, install a new front axle hub bearing to the steering knuckle.





SST : 09950-60020

09951-00720

SST : 09950-70010

09951-07100

2. INSTALL FRONT DISC BRAKE DUST COVER Installation

3. INSTALL FRONT AXLE HUB SUB-ASSEMBLY Installation

4. INSTALL FRONT AXLE HUB HOLE SNAP RING Installation

5. INSTALL FRONT LOWER BALL JOINT Installation

6. INSTALL FRONT AXLE ASSEMBLY Installation

7. INSTALL FRONT LOWER SUSPENSION ARM Installation

8. INSTALL TIE ROD END SUB-ASSEMBLY Installation

9. INSTALL FRONT DISC Installation

10. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY Front Axle Hub

11. INSTALL FRONT AXLE HUB NUT Installation

12. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY Front Axle Hub

13. REMOVE FRONT DISC Removal

14. INSPECT FRONT AXLE HUB BEARING LOOSENESS Front Axle Hub

15. INSPECT FRONT AXLE HUB RUNOUT Front Axle Hub

16. INSTALL FRONT DISC Installation

17. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY Front Axle Hub

18. CONNECT FRONT SPEED SENSOR (for TMC Made) Installation

19. CONNECT FRONT SPEED SENSOR (except TMC Made) Installation

20. INSTALL FRONT AXLE HUB NUT Installation

21. INSTALL FRONT WHEEL

Torque : 103 Nm (1050 kgf-cm, 76 ft-lbf)

22. INSPECT AND ADJUST FRONT WHEEL ALIGNMENT

HINT
Front Wheel Alignment

23. CHECK FOR SPEED SENSOR SIGNAL

HINT
Test Mode Procedure
