Pinout Values and Diagnostic Parameters





STEERING COLUMN: STEERING LOCK SYSTEM: TERMINALS OF ECU; 2013 MY Corolla [07/2012 -]

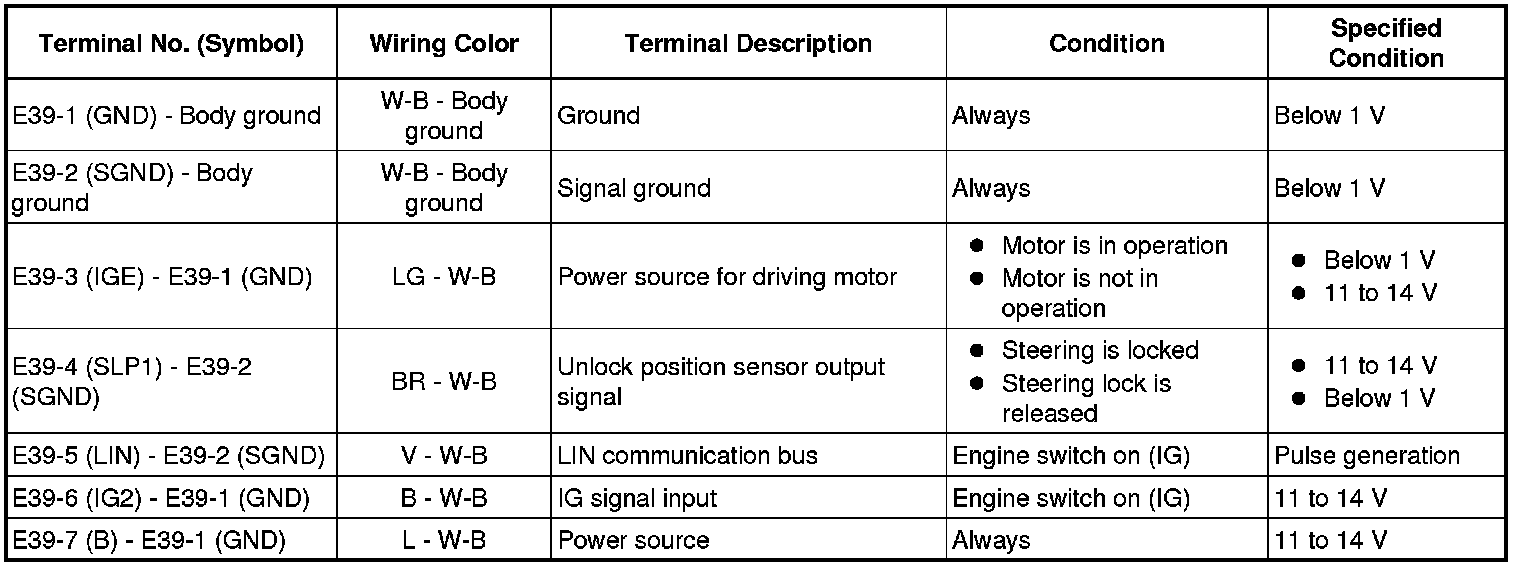

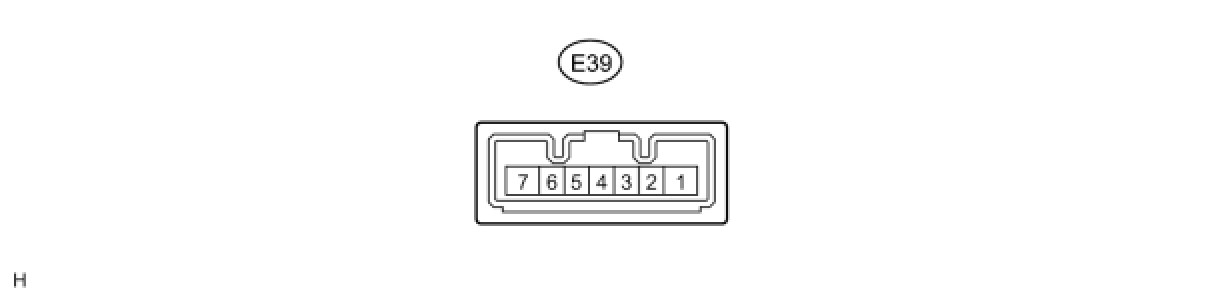

1. STEERING LOCK ACTUATOR ASSEMBLY (STEERING LOCK ECU)
