System Diagram

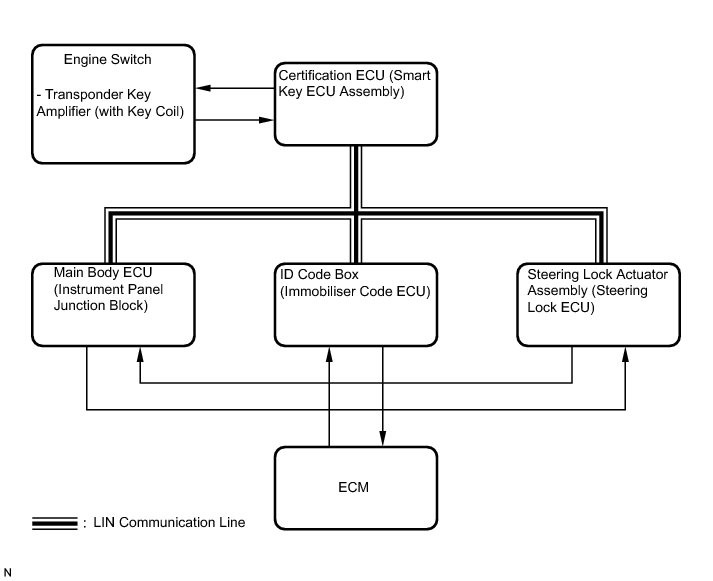

STEERING COLUMN: STEERING LOCK SYSTEM: SYSTEM DIAGRAM; 2013 MY Corolla [07/2012 -]

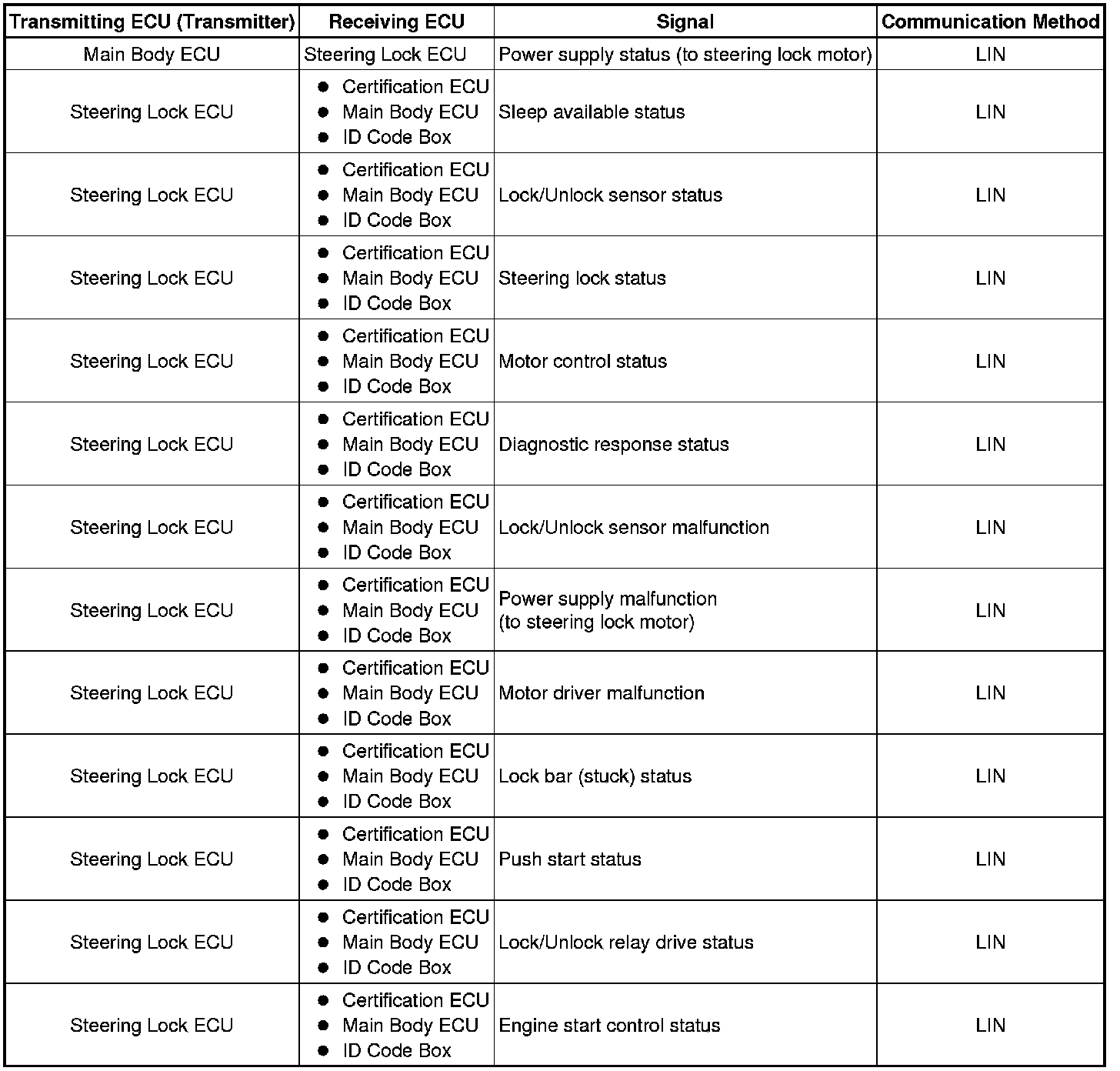

Input and Output Signals of Each ECU
