Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Description and Operation

Starting System: Description and Operation

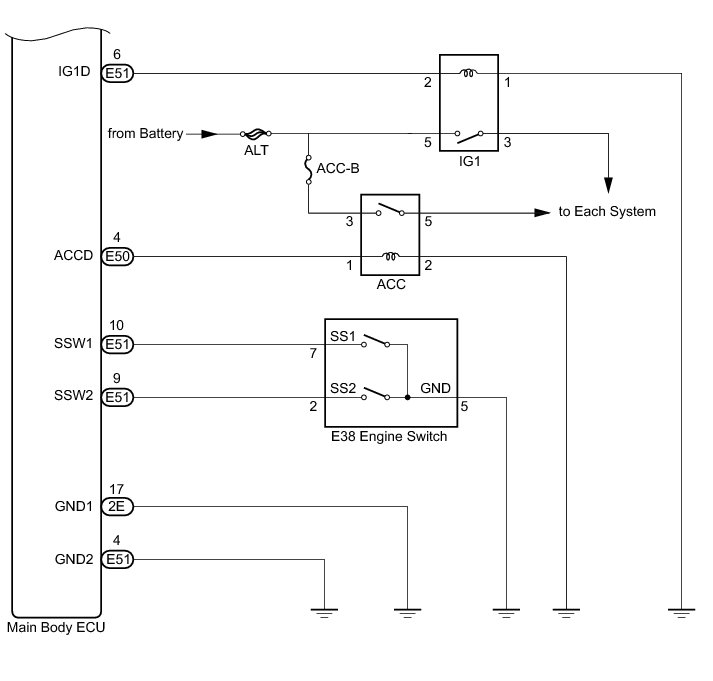

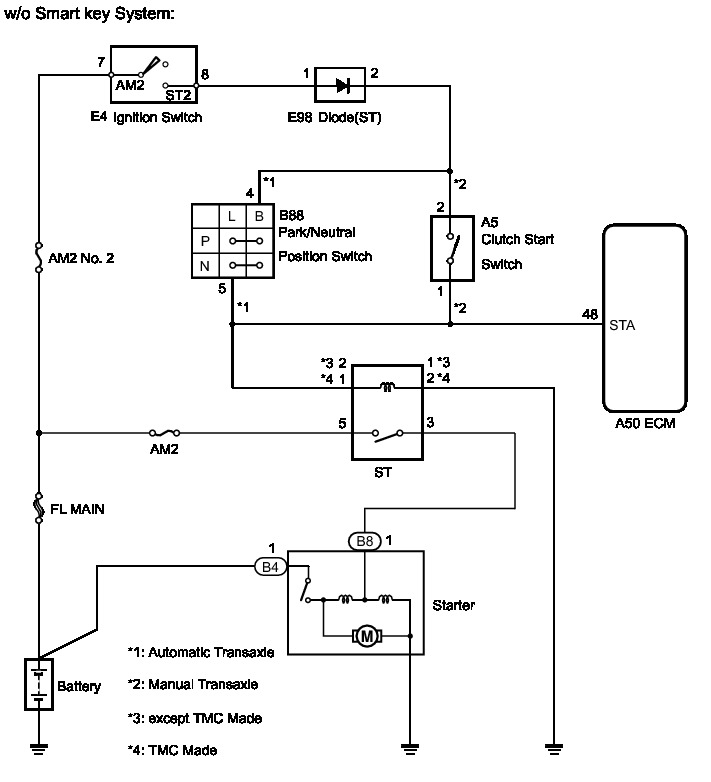

2ZR-FE STARTING: STARTING SYSTEM: SYSTEM DIAGRAM; 2013 MY Corolla [07/2012 -]
