Flywheel

Flywheel

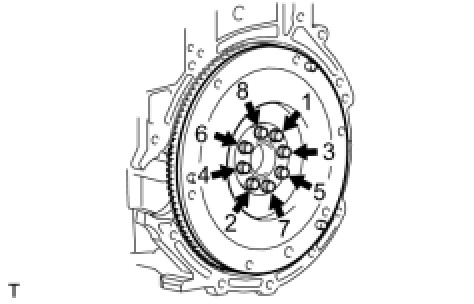

Uniformly install and tighten the 8 bolts in the sequence shown in the illustration.





Torque 49 Nm (500 kgf-cm, 36 ft-lbf)

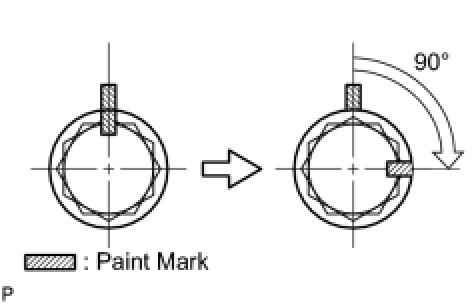

Mark the top of the bolts with paint.





Further tighten the 8 bolts an additional 90° in the same sequence.
Check that the paint marks are now at a 90° angle to the top.
