Flex Plate

Drive Plate

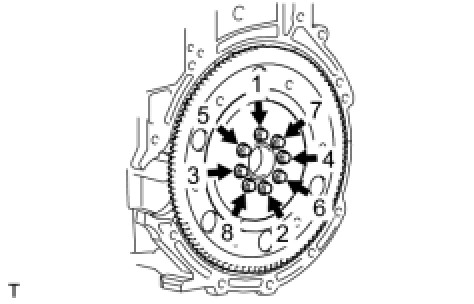

Install the front spacer, drive plate and rear spacer with the 8 bolts. Uniformly tighten the 8 bolts in the sequence shown in the illustration.





Torque 88 Nm (897 kgf-cm, 65 ft-lbf)
