Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Drive Axles, Bearings and Joints >> Torque Specifications >> Axle and Differential

Axle and Differential

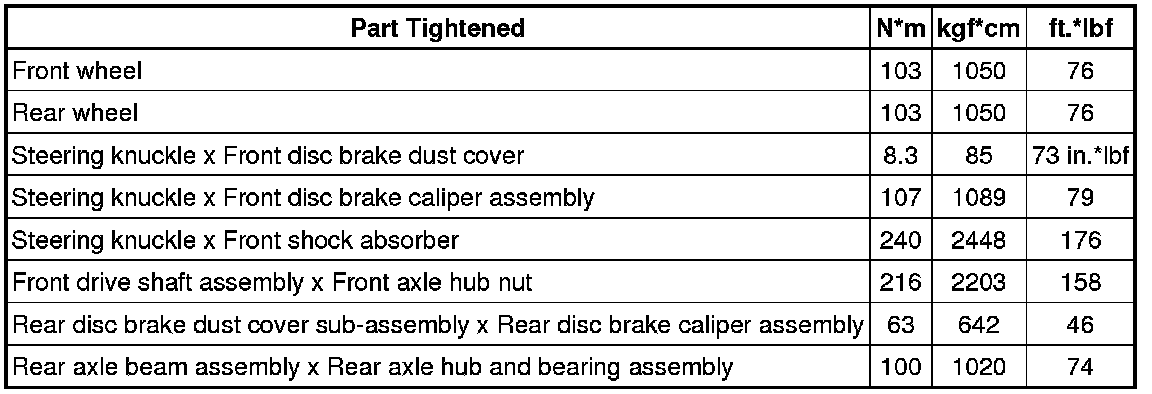

SPECIFICATIONS: AXLE AND DIFFERENTIAL: TORQUE SPECIFICATIONS; 2013 MY Corolla [07/2012 -]

Axle
