Water Pump






Water Pump

Install the water pump assembly to the timing chain cover with the 5 bolts.





Bolt A - Torque 26 Nm (260 kgf-cm, 19 ft-lbf)
Bolt B - Torque 21 Nm (214 kgf-cm, 15 ft-lbf)

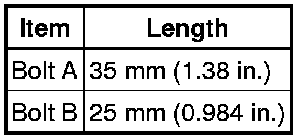

Bolt Length:
