Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Brakes and Traction Control >> System Specifications >> Brake Control / Dynamic Control Systems

Brake Control / Dynamic Control Systems

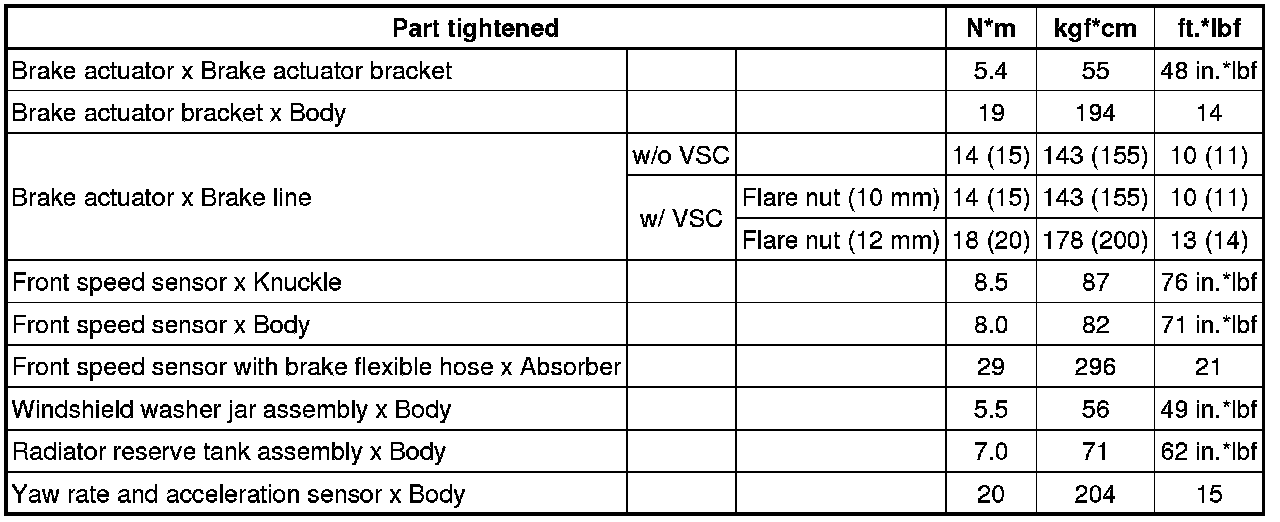

SPECIFICATIONS: BRAKE CONTROL / DYNAMIC CONTROL SYSTEMS: TORQUE SPECIFICATIONS; 2013 MY Corolla [07/2012 -]





( ) For use without union nut wrench
