Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Body and Frame >> Doors, Hood and Trunk >> System Specifications

System Specifications

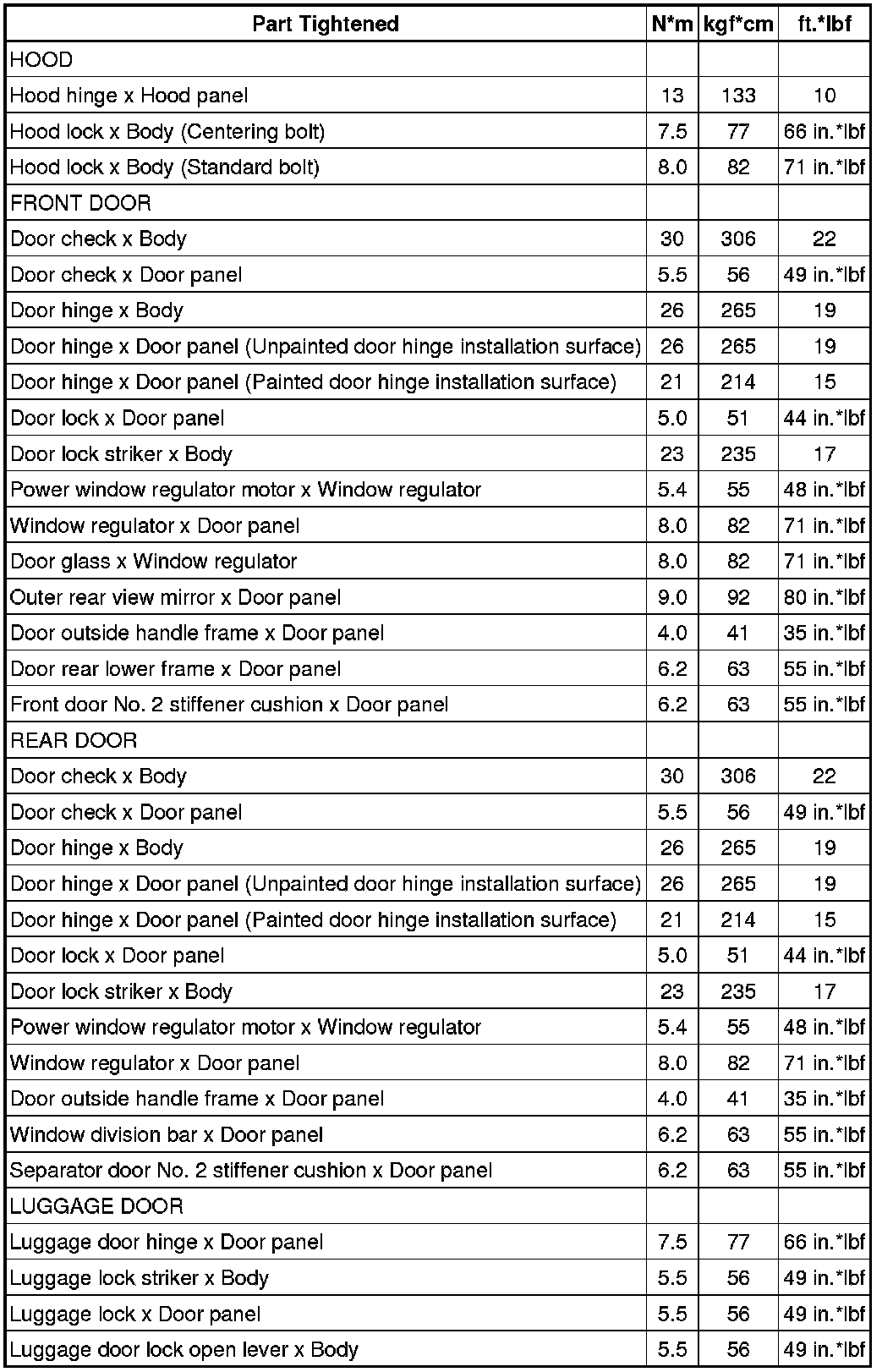

SPECIFICATIONS: DOOR / HATCH: TORQUE SPECIFICATIONS; 2013 MY Corolla [07/2012 -]
