Removal





WIPER / WASHER: WASHER LEVEL WARNING SWITCH: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE FRONT BUMPER ASSEMBLY

Removal

2. DRAIN WASHER FLUID Removal

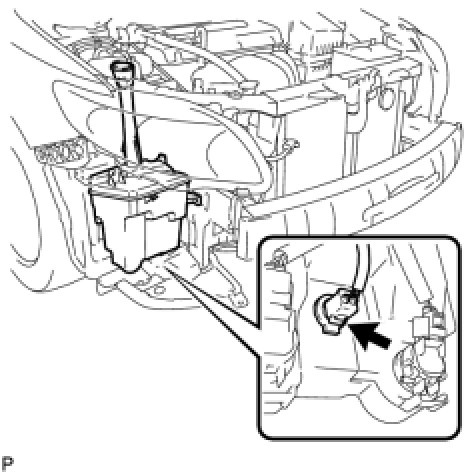

3. REMOVE LEVEL WARNING SWITCH ASSEMBLY

(a) Disconnect the connector.





(b) Remove the level warning switch assembly.
