SEAT BELT: REAR SEAT OUTER BELT ASSEMBLY: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE SPARE WHEEL COVER Removal

2. REMOVE REAR SEAT HEADREST ASSEMBLY

3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

4. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

5. REMOVE REAR SEATBACK ASSEMBLY LH Removal

6. REMOVE REAR SEATBACK ASSEMBLY RH Removal

7. REMOVE REAR DOOR SCUFF PLATE LH Removal

8. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

9. REMOVE REAR SEAT SIDE GARNISH LH Removal

10. REMOVE ROOF SIDE INNER GARNISH BOARD LH Removal

11. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH Removal

12. REMOVE REAR DOOR SCUFF PLATE RH

HINT
Use the same procedure for the RH side and the LH side.

13. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

14. REMOVE REAR SEAT SIDE GARNISH RH

HINT
Use the same procedure for the RH side and the LH side.

15. REMOVE ROOF SIDE INNER GARNISH BOARD RH

HINT
Use the same procedure for the RH side and the LH side.

16. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

HINT
Use the same procedure for the RH side and the LH side.

17. REMOVE PACKAGE TRAY TRIM BELT HOLE COVER Removal

18. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Spoiler) Removal

19. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Spoiler) Removal

20. REMOVE REAR SEAT OUTER BELT ASSEMBLY

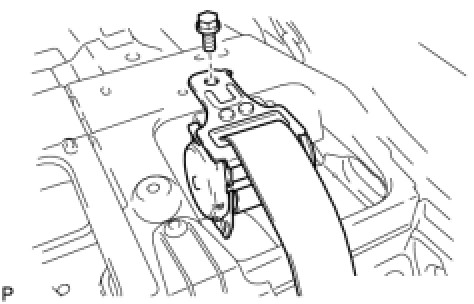

(a) Remove the bolt and disconnect the floor end of the rear seat outer belt assembly.

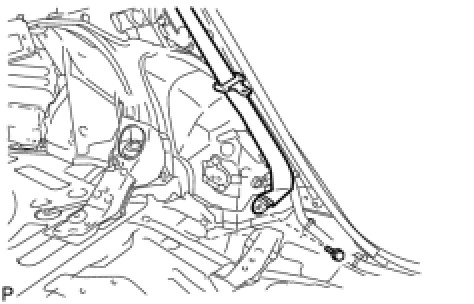

(b) Remove the bolt and the rear seat outer belt assembly.
