SEAT BELT: REAR SEAT INNER BELT ASSEMBLY: REMOVAL; 2013 MY Corolla [07/2012 -]

1. REMOVE SPARE WHEEL COVER Removal

2. REMOVE REAR SEAT HEADREST ASSEMBLY

3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

4. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

5. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY LH

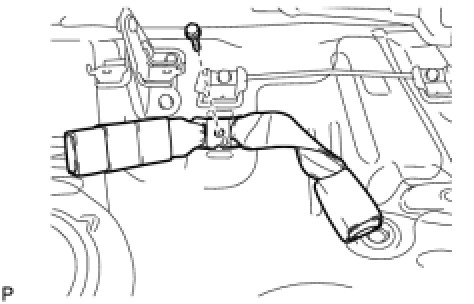

(a) Remove the bolt and the rear seat inner with center belt assembly LH.





6. REMOVE REAR SEATBACK ASSEMBLY LH Removal

7. REMOVE REAR SEATBACK ASSEMBLY RH Removal

8. REMOVE REAR DOOR SCUFF PLATE LH Removal

9. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP LH

10. REMOVE REAR SEAT SIDE GARNISH LH Removal

11. REMOVE ROOF SIDE INNER GARNISH BOARD LH Removal

12. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY LH Removal

13. REMOVE REAR DOOR SCUFF PLATE RH

HINT
Use the same procedure for the RH side and the LH side.

14. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

15. REMOVE REAR SEAT SIDE GARNISH RH

HINT
Use the same procedure for the RH side and the LH side.

16. REMOVE ROOF SIDE INNER GARNISH BOARD RH

HINT
Use the same procedure for the RH side and the LH side.

17. REMOVE ROOF SIDE INNER GARNISH ASSEMBLY RH

HINT
Use the same procedure for the RH side and the LH side.

18. REMOVE PACKAGE TRAY TRIM BELT HOLE COVER

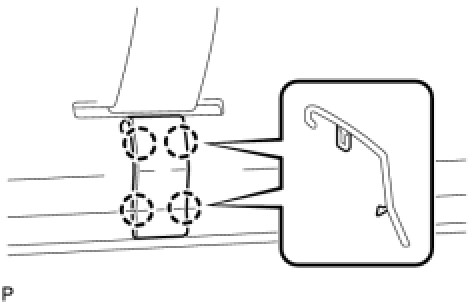

(a) Disengage the 4 claws and remove the package tray trim belt hole cover.





19. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/o Rear Spoiler)

(a) Disconnect the connector.

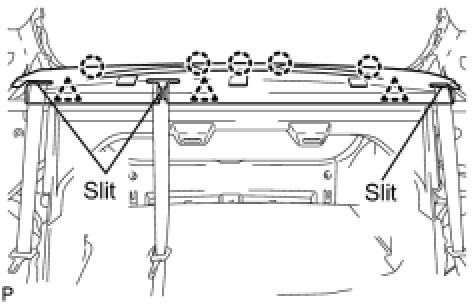

(b) Disengage the 3 clips and the 5 claws.





(c) Pull out the belts from the slits and then remove the package tray trim panel assembly.

20. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Rear Spoiler)

(a) Disengage the 3 clips and the 5 claws.





(b) Pull out the belts from the slits and then remove the package tray trim panel assembly.

21. REMOVE REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

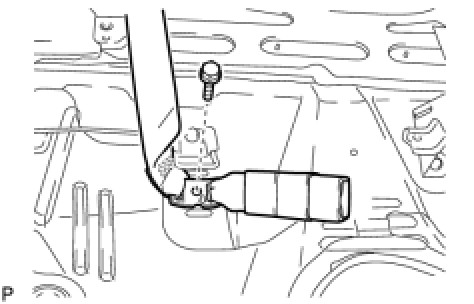

(a) Remove the bolt and disconnect the floor end of the rear seat inner with center belt assembly RH.





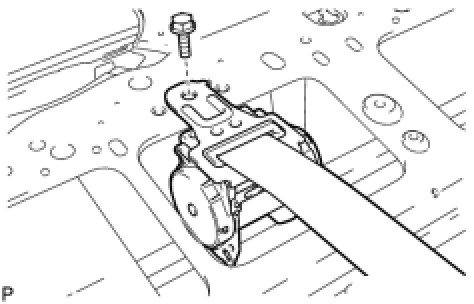

(b) Remove the bolt and the rear seat inner with center belt assembly RH.
