Home >> Toyota >> 2013 >> Corolla L4-1.8L (2ZR-FE) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Locations

Seat Belt Systems: Locations

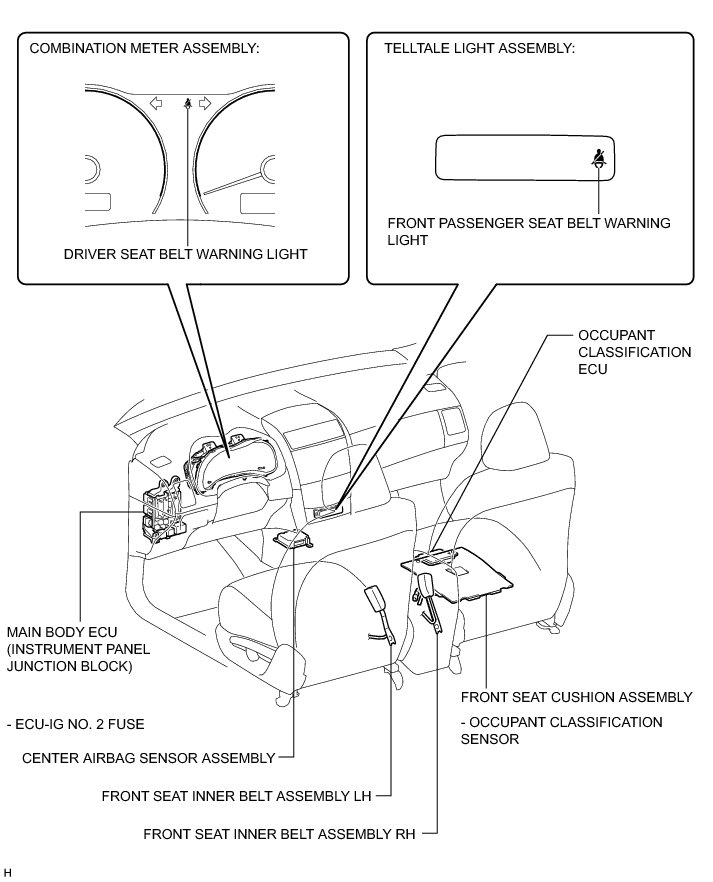

SEAT BELT: SEAT BELT WARNING SYSTEM: PARTS LOCATION; 2013 MY Corolla [07/2012 -]
