Pinout Values and Diagnostic Parameters

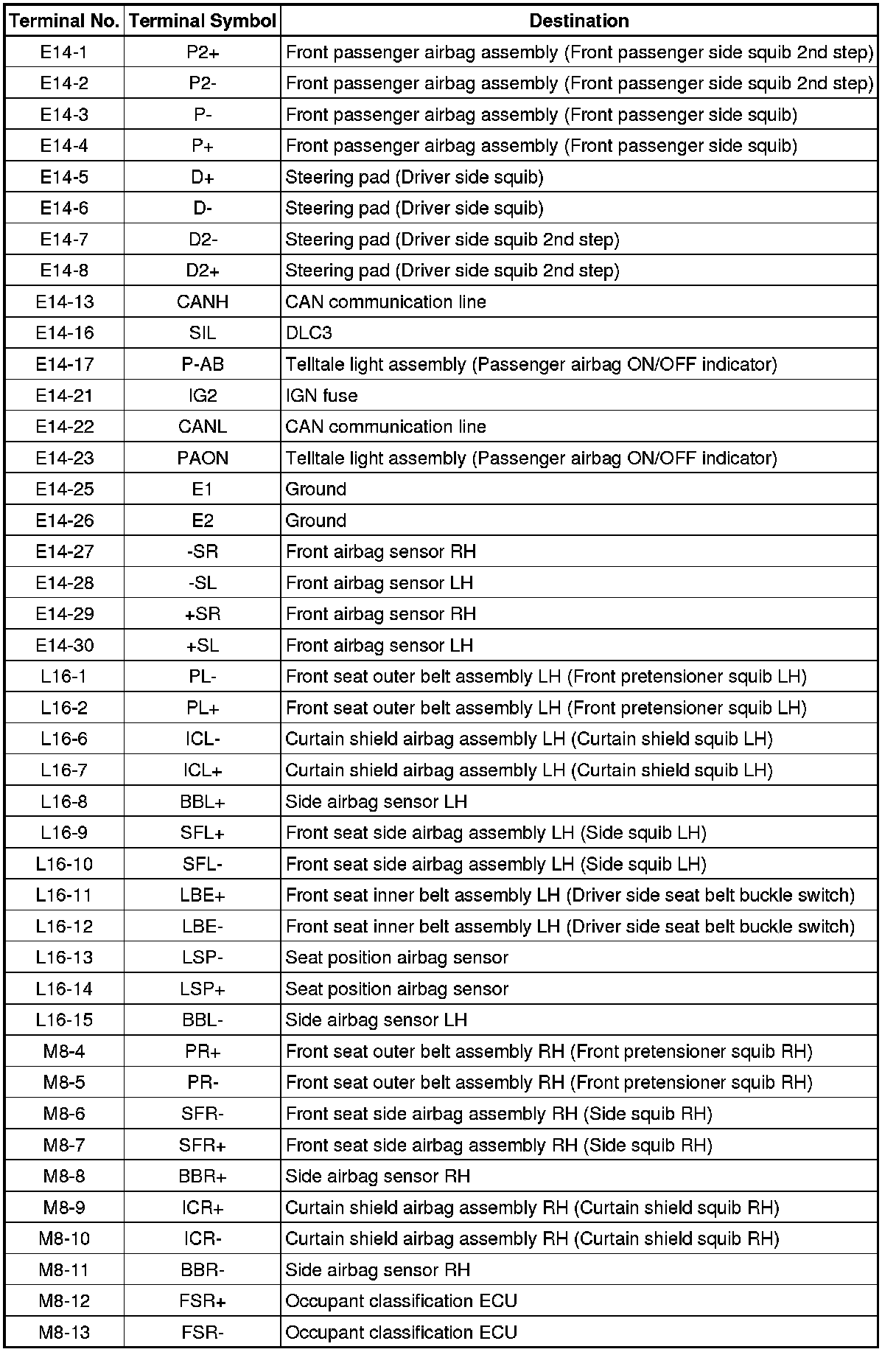

SUPPLEMENTAL RESTRAINT SYSTEMS: AIRBAG SYSTEM: TERMINALS OF ECU; 2013 MY Corolla [07/2012 -]

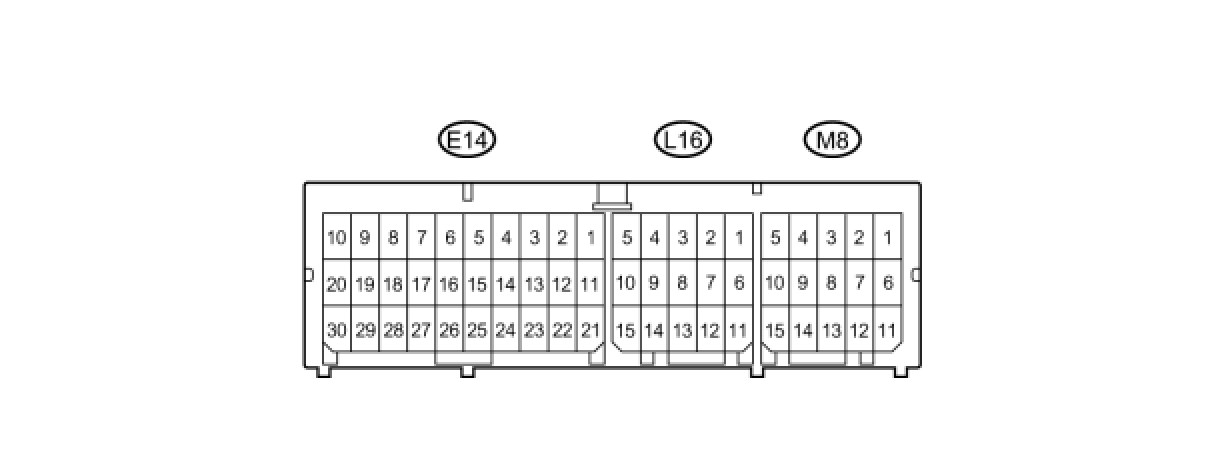

1. CENTER AIRBAG SENSOR ASSEMBLY
