Exterior Lighting System
LIGHTING (EXT): LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE; 2013 MY Corolla [07/2012 -]
HINT
Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
Headlight (w/ Daytime Running Light)

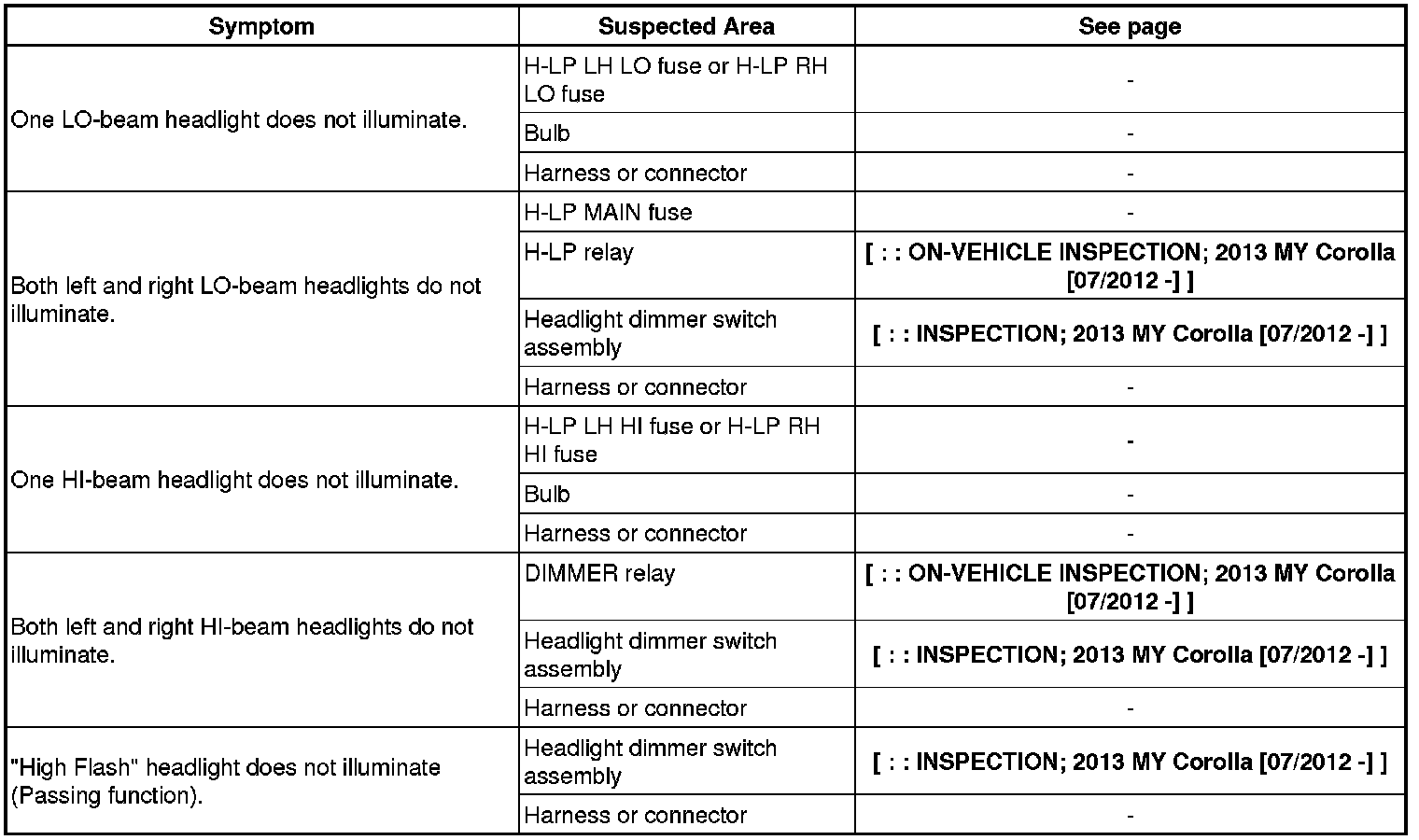

Headlight (w/o Daytime Running Light)

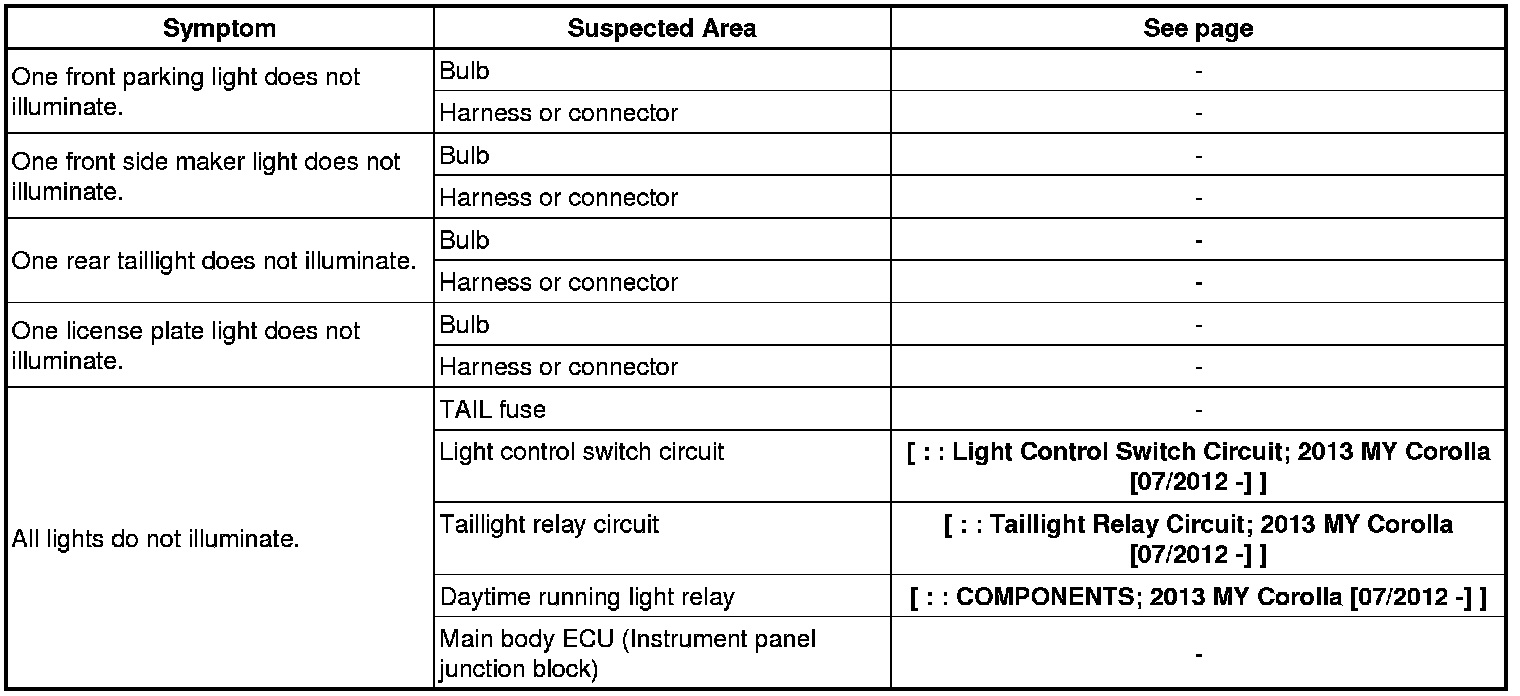

Taillight (w/ Daytime Running Light)

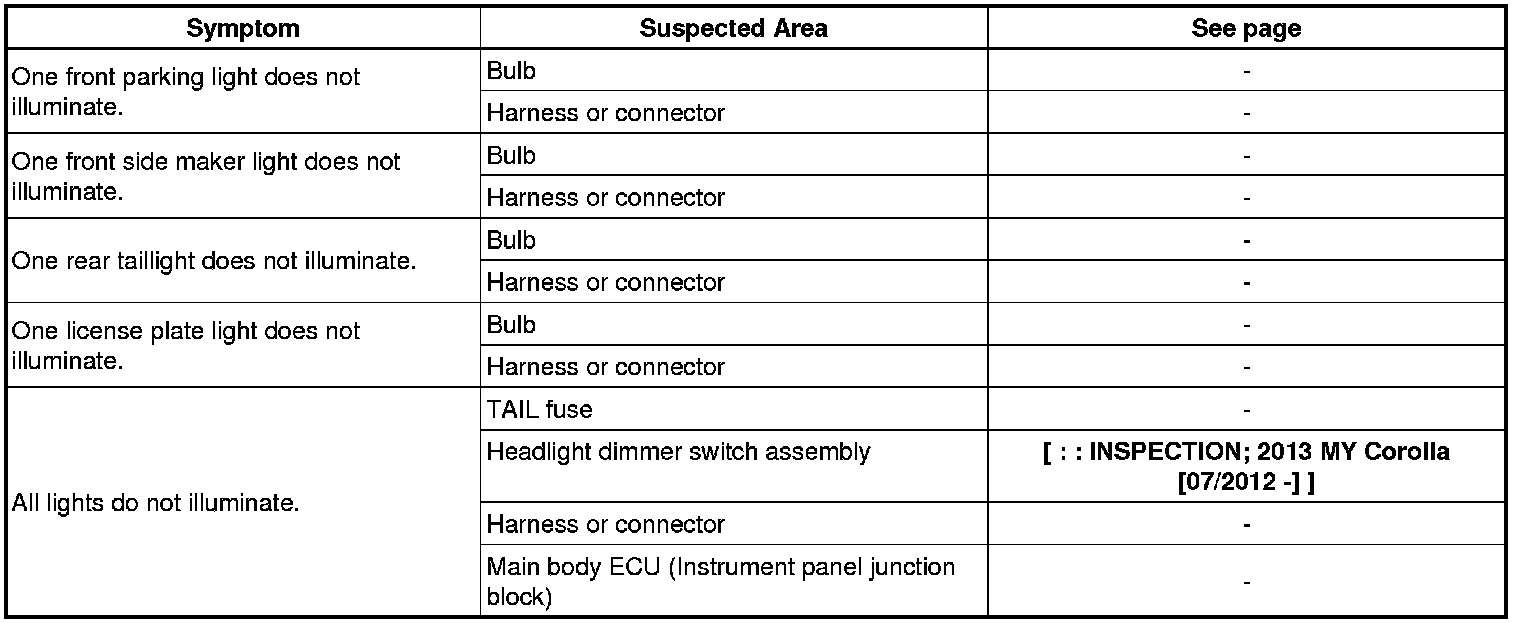

Taillight (w/o Daytime Running Light)

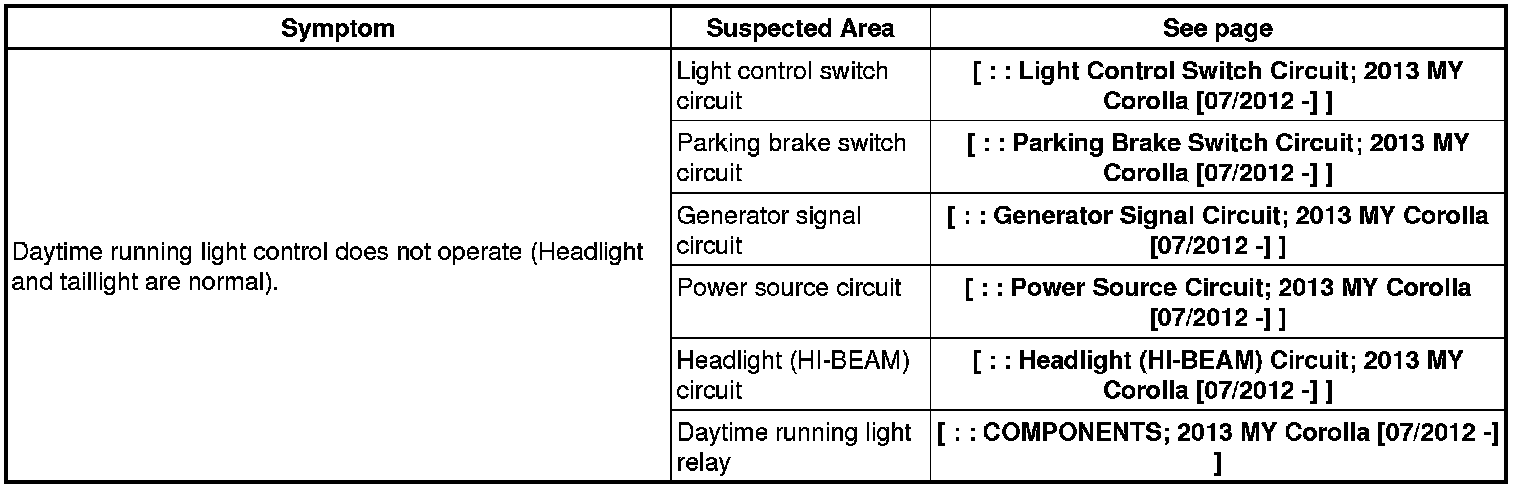

Daytime Running Light Control

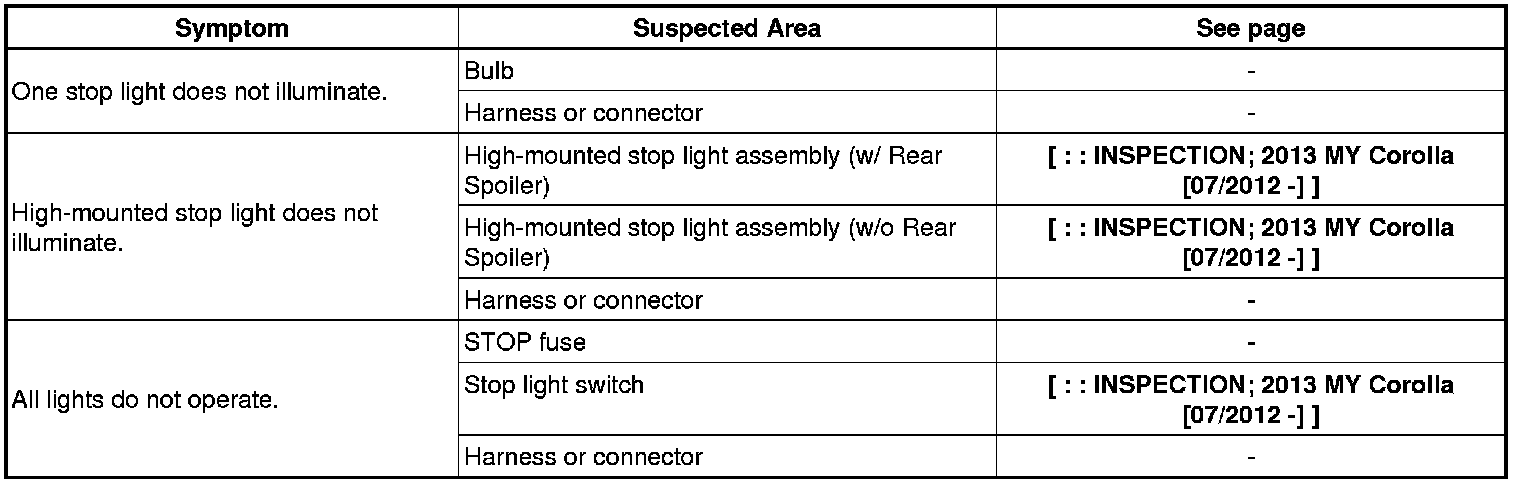

Stop Light

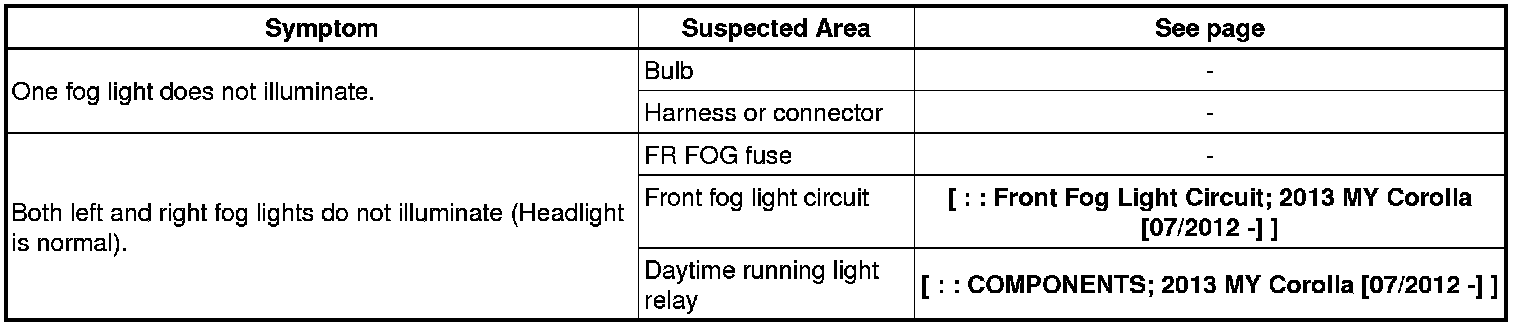

Front Fog Light (w/ Daytime Running Light)

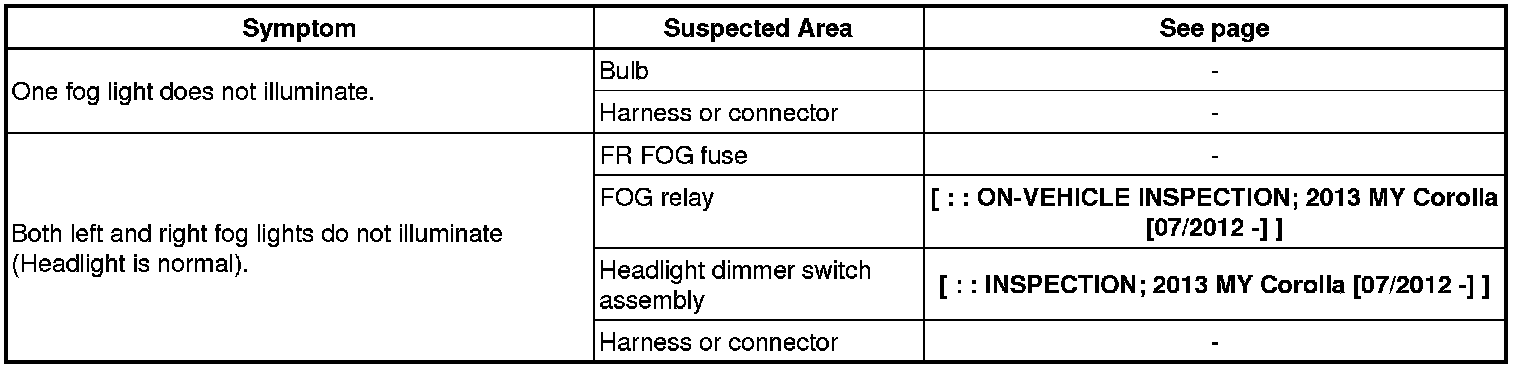

Front Fog Light (w/o Daytime Running Light)

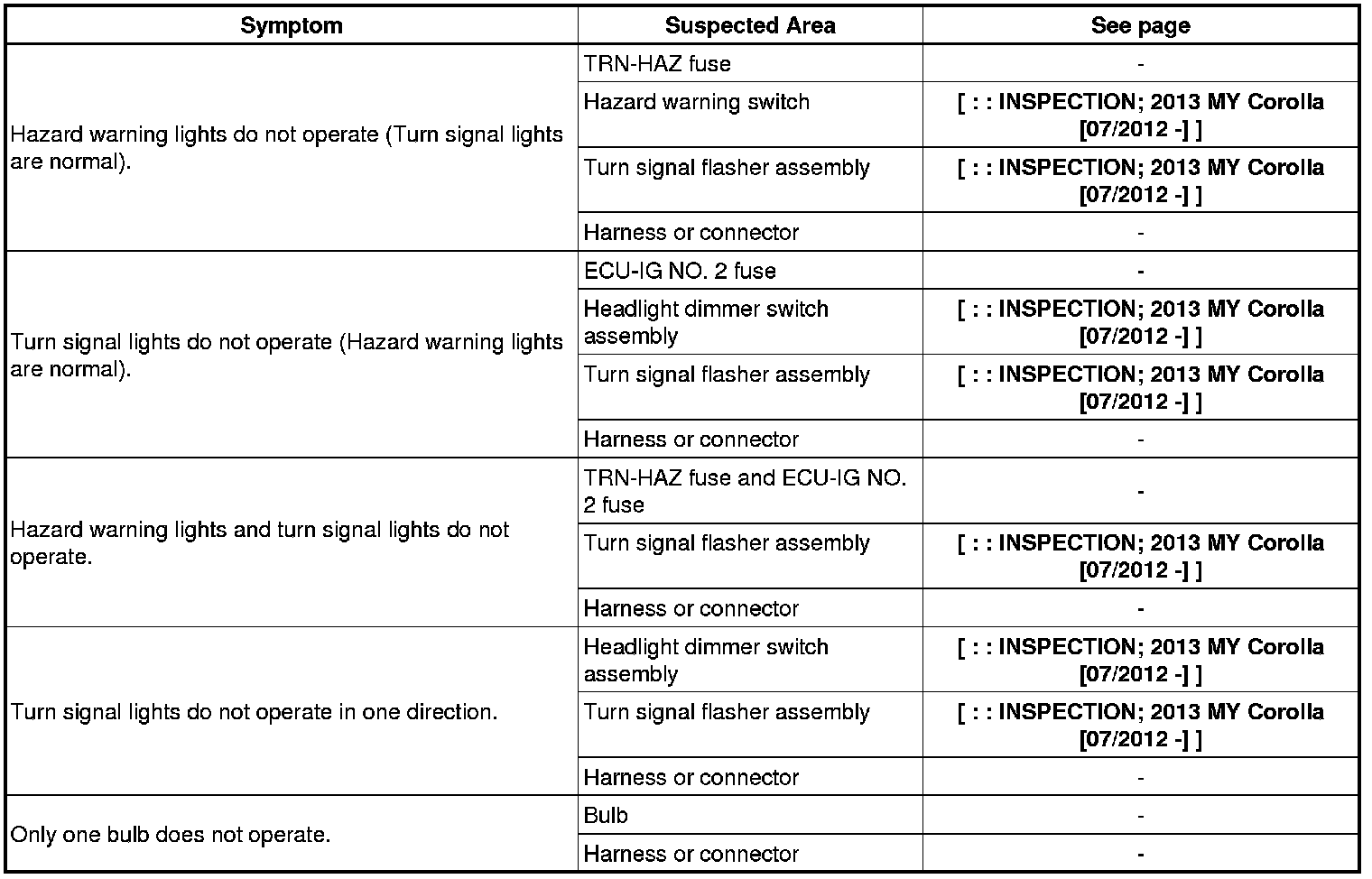

Turn Signal and Hazard Warning Light

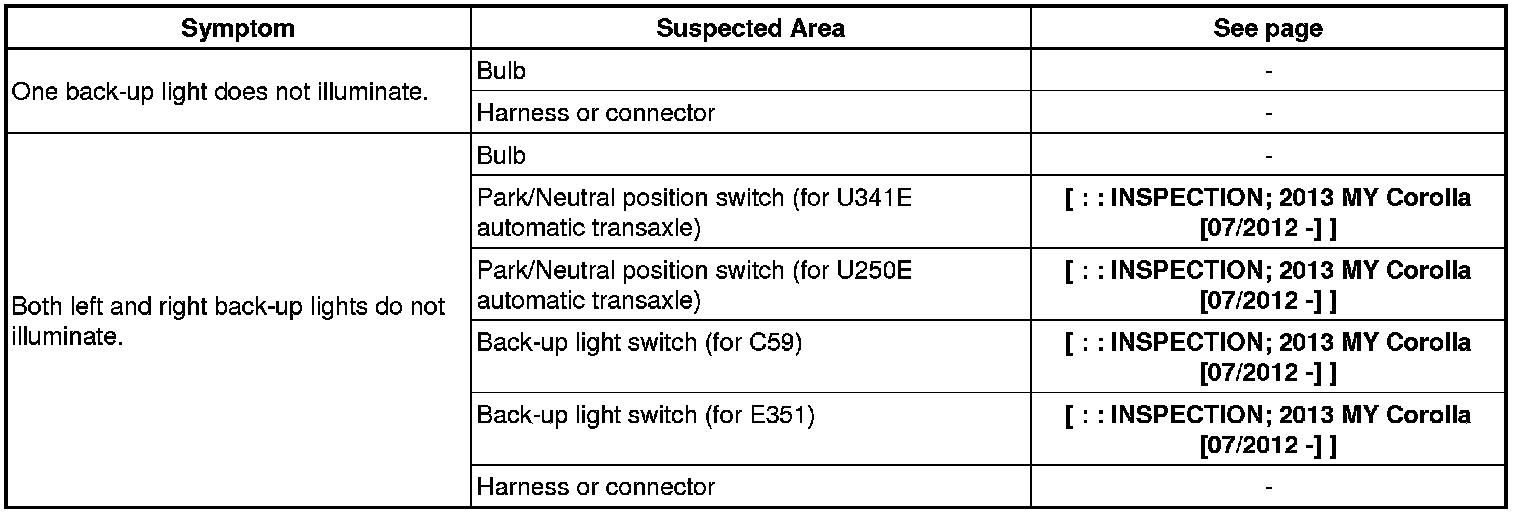

Back-up Light

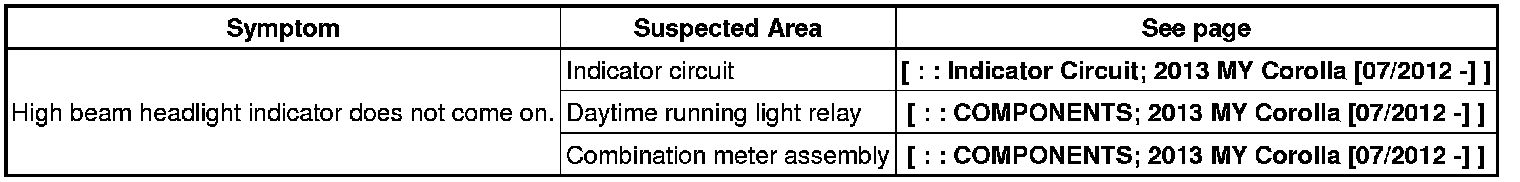

Headlight Indicator

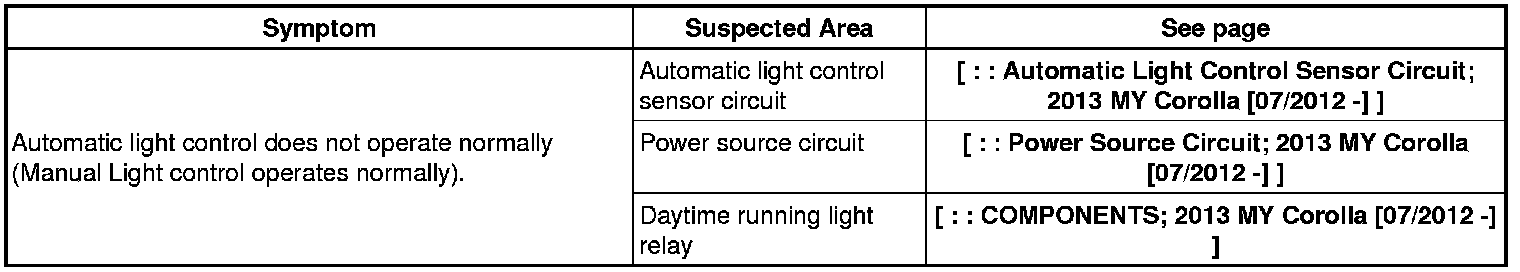

Automatic Light Control
