Reassembly





LIGHTING (EXT): FOG LIGHT ASSEMBLY: REASSEMBLY; 2013 MY Corolla [07/2012 -]

1. INSTALL FOG LIGHT BULB

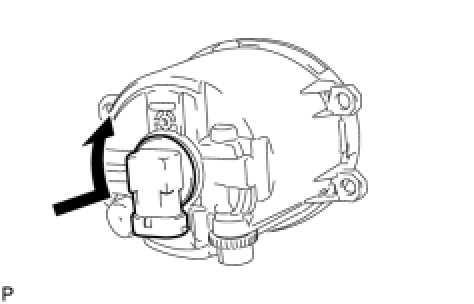

(a) Install the fog light bulb as shown in the illustration.
